4-Flute Cobalt 8% Square Single End CenterCut Ball Finisher CTD HGC-4B-TC TiCN 3/4x3/4x1-5/8x3-7/8 - C32783

4-Flute Cobalt 8% Square Single End CenterCut Ball Finisher CTD HGC-4B-TC TiCN 3/4x3/4x1-5/8x3-7/8 - C32783

Cleveland
SKU:
C32783
|
UPC:
697334327837
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

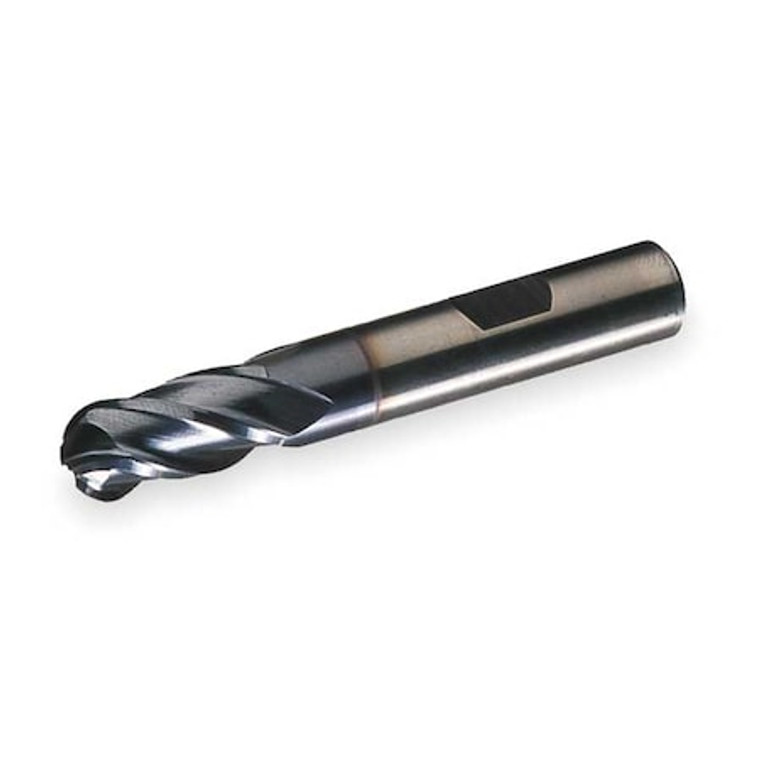

Ball End Mill, 0.75 in Milling Dia., Cobalt, TiCN, Non-Coolant Through
Additional Information
Country of Origin:
United States
Dimension Type:
Fractional Inch
Milling Diameter:
3/4";End Mill Material=Cobalt"
Number of Flutes:
4
Length of Cut:
1 5/8 in
Single End/Double End:
Single End
End Mill Cutting Type:
Center Cutting
Grade:
General Purpose
Shank Dia.:
3/4 in
Helix Angle:
30 Degrees
Milling Dia.:
0.75 in
Shank Type:
Weldon
Finish:
Ticn
Cutting Direction:
Right Hand
List Number:
HGC-4B-TC
Overall Length:
3.875 in
End Mill Style:
Ball Nose
Item:
Ball End Mill
End Mill Application:
Finishing
Corner Radius:
0.000";Neck Dia.=Not Applicable"
Neck Length:
Not Applicable
Measurement System:
Fractional Inch
Material Grade - Machining:
General Purpose
Drilling Tool Configuration:
Individual
Material - Machining:
Cobalt
Shank Type - Machining:
Weldon Flat
Coolant Fed:
Non-Coolant Through
Primary Material Application:
Stainless Steel, Steel
Finish - Machining:
TiCN
Primary Material Application ISO Code:
M, P, S
Chip-Breaker:
No
Material Applications:
Carbon Steel, Alloy Steel, Stainless Steel, Hi-Temp Alloy
Spiral Direction:
Right Hand
Package Quantity:
1
