4-Flute Cobalt 8% Ball Nose Single End CenterCut Finisher CTD HGC-4B-TC TiCN 5/8x5/8x1-5/8x3-3/4 - C32782

4-Flute Cobalt 8% Ball Nose Single End CenterCut Finisher CTD HGC-4B-TC TiCN 5/8x5/8x1-5/8x3-3/4 - C32782

Cleveland
SKU:
C32782
|
UPC:
697334327820
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

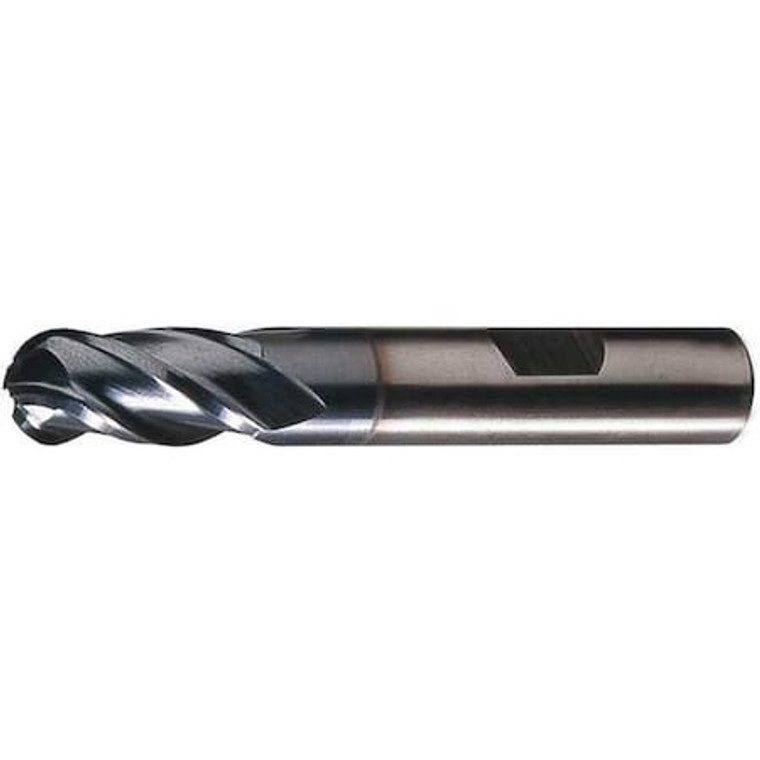

Ball End Mill, 0.625 in Milling Dia., Cobalt, TiCN, Non-Coolant Through
Additional Information
Country of Origin:
United States
Dimension Type:
Fractional Inch
Milling Diameter:
5/8";End Mill Material=Cobalt"
Number of Flutes:
4
Length of Cut:
1 5/8 in
Single End/Double End:
Single End
End Mill Cutting Type:
Center Cutting
Grade:
General Purpose
Shank Dia.:
5/8 in
Helix Angle:
30 Degrees
Shank Type:
Weldon
End Mill Style:
Ball Nose
End Mill Application:
Finishing
Finish:
Ticn
Cutting Direction:
Right Hand
Overall Length:
3.75 in
Item:
Ball End Mill
Milling Dia.:
0.625 in
Corner Radius:
0.000";List Number=HGC-4B-TC"
Neck Dia.:
Not Applicable
Neck Length:
Not Applicable
Measurement System:
Fractional Inch
Drilling Tool Configuration:
Individual
Material - Machining:
Cobalt
Chip-Breaker:
No
Shank Type - Machining:
Weldon Flat
Finish - Machining:
TiCN
Material Grade - Machining:
General Purpose
Primary Material Application ISO Code:
M, P, S
Primary Material Application:
Stainless Steel, Steel
Coolant Fed:
Non-Coolant Through
Material Applications:
Carbon Steel, Alloy Steel, Stainless Steel, Hi-Temp Alloy
Spiral Direction:
Right Hand
Package Quantity:
1
