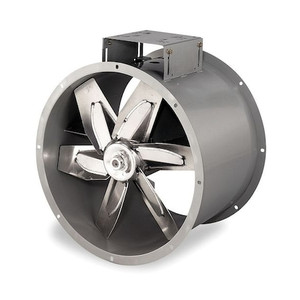

36" Tubeaxial Fan - 166209A
Tubeaxial Fan, Blade Diameter 36 in, Maximum Motor Horsepower 5 hp, Minimum Motor Horsepower 1 hp, Maximum Motor Speed 1,133 RPM, Minimum Motor Speed 687 RPM, Maximum Airflow 20,650 cfm, Minimum Airflow 12,520 cfm, Maximum Static Pressure 1 in wc, For Air Type Clean Air, Assembly Unassembled, Blade Material Aluminum, Housing Material Steel, Number of Blades 6, Standards AMCA Sound and Air, Bolt Circle Diameter 38 1/4 in, Includes Drive Package No, Includes Motor No, Bearing Type Ball Bearing
- Country of Origin:
- United States
- Item:
- Tubeaxial Fan
- Drive Type:
- Belt Drive
- Number of Blades:
- 6
- Height:
- 52 7/8 in
- Blade Dia.:
- 36 in
- Width:
- 39 3/4 in
- Shaft Dia.:
- 1 3/16 in
- Max. Depth:
- 29 in
- Bearing Type:
- Ball Bearing
- Dimension E:
- 7/16 in
- Housing Finish:
- Baked Enamel
- Dimension B:
- 22 7/16 in
- Max. Motor Height:
- 10 in
- Bolt Circle Dia.:
- 38 1/4 in
- Max. Ambient Temp.:
- 104 Degrees F
- Mounting Position:
- Vertical/Horizontal
- Inlet Dia.:
- 36 5/8 in
- Dimension C:
- 36 1/2 in
- Companion Flange Stock No.:
- 3C442
- Replacement Fan Blade Stock No.:
- 3C420
- Blade Material:
- Aluminum
- Max. Inlet Temp.:
- 200 Degrees F
- Housing Material:
- Steel
- Standards:
- AMCA Sound and Air
- Includes:
- Belt Guard
- Housing Dia. w/Mtg. Flange:
- 39 3/4 in
- Dimension D:
- 29 in
- Outlet Dia.:
- 36 5/8 in
- Dimension A:
- 39 3/4 in
- Housing Dia. w/o Mtg. Flange:
- 36 1/2 in
- Overall Height:
- 52 7/8 in
- Overall Length:
- 29 in
- Features:
- Factory Installed Cast Iron Sheave is Assembled on Fan Shaft, Spark Resistant Propellers, Streamlined Belt Tunnel
- Maximum Noise Level @ 5 Feet:
- 60 sones
- Minimum Motor Speed:
- 687 RPM
- Includes Drive Package:
- No
- Blade Diameter:
- 36 in
- Brake Horsepower:
- 4 1/2 hp
- Maximum Airflow:
- 20,650 cfm
- Replacement Fan Blade Part Number:
- 3C420
- Includes Motor:
- No
- Maximum Fan Speed:
- 1,133 RPM
- Minimum Airflow:
- 12,520 cfm
- Mounting Orientation:
- Horizontal, Vertical
- Safety Features:
- Spark Resistant Aluminum Blade, Spark Resistant Propellers
- Overall Diameter:
- 39 3/4 in
- Resistance Properties:
- Rust Resistant
- Maximum Motor Horsepower:
- 5 hp
- Bolt Circle Diameter:
- 38 1/4 in
- Maximum Motor Speed:
- 1,133 RPM
- Spark Resistant Construction Type:
- B
- Minimum Motor Horsepower:
- 1 hp
- Maximum Static Pressure:
- 1 in wc
- Center Height:
- 22 1/2 in
- For Air Type:
- Clean Air
- Maximum Inlet Air Temperature:
- 200 Degrees F
- Maximum Ambient Temperature:
- 104 Degrees F
- Assembly:
- Unassembled
- Propeller Shaft Diameter:
- 1 1/4 in
- Body Diameter:
- 36 5/8 in
- Package Quantity:
- 1
