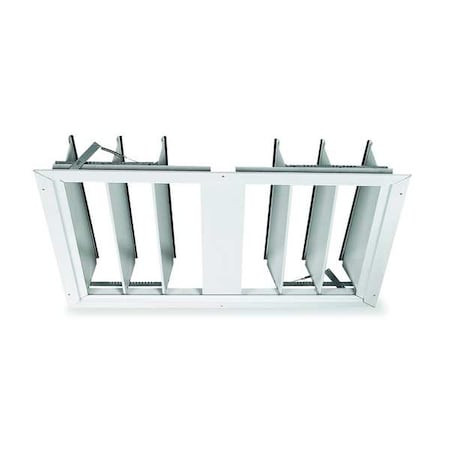

36 in Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter - 3C512

Name: 36 in Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter - 3C512
Brand: Dayton
SKU: 3C512
Price: 148.34 USD
Availability: InStock

Dayton

SKU:

3C512

UPC:

190735281093

Availability:

In Stock

(No reviews yet)

36 In.H 32 In.W Aluminum Ceiling Fan Damper, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 1500 fpm, Overall Height 36 in, Rough Opening Shape Rectangular, Fits Fan Diameter 36 in, Free Area 6 sq ft, Overall Width 32 in, Frame Material Thickness 0.1 in, Frame Depth 1 3/8 in, Rough Opening Length 34 in, Maximum Pressure 1 in wc, Rough Opening Width 30 in, Blade Material Aluminum, Closure Type Gravity, Flange Width 1 5/8 in

Country of Origin:: United States
Item:: 36H 32"W Aluminum Ceiling Fan Damper"
Shutter Mounting Position:: Horizontal
Shutter Mounting Location:: Ceiling
Shutter Construction Material:: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area:: 5.981 sq ft
Shutter Opening Required:: 34 in x 30 in
Shutter Overall Size:: 36 in L x 32 in W
Fits Fan Dia.:: 36 in
Blade Material:: Aluminum
Max. Velocity:: 1500 FPM
Width:: 32 in
Number of Panels:: 1
Length:: 36 in
Shutter Item:: Whole House Fan Economy Ceiling Truss Shutter
For Use With:: 36 in Whole House Fans
Mounting Hole Size:: Prepunched
Flange Width:: 1 5/8 in
Frame Depth:: 1 3/8 in
Open Depth:: 5 in
Mounting Position:: Horizontal
Free Area:: 6 sq ft
Closure Type:: Gravity
Color:: White
Rough Opening Length:: 34 in
Fits Fan Diameter:: 36 in
Rough Opening Width:: 30 in
Damper Finish:: Baked Enamel
Counterbalanced:: Yes
Closure Velocity Rating:: 1,500 fpm
Frame Material:: Aluminum
Flange Type:: Reversed Flange
Blade Seal Material:: Felt
Tie-Rod Material:: Galvanized Steel Frame and Tie Rods
Maximum Pressure:: 1 in wc
Maximum Air Velocity:: 1500 fpm
Mounting Hole Diameter:: 1/4 in
Bushing Material:: Stainless Steel
Rough Opening Shape:: Rectangular
Series:: CTRF
Switch Action:: Normally Closed
Overall Width:: 32 in
Frame Material Thickness:: 0.1 in
Overall Height:: 36 in
Opening Type:: Gravity
Blade Material Thickness:: 26 ga
Airflow Direction:: Horizontal
Package Quantity:: 1
