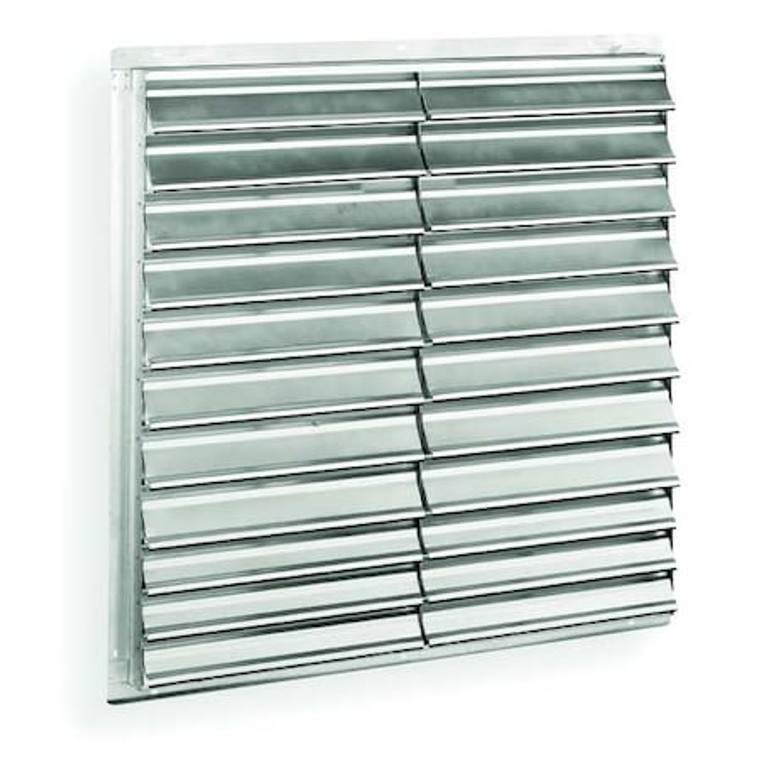

36 in Backdraft Damper / Wall Shutter, 36-1/2 in x 36-1/2 in - 1C209

36 in Backdraft Damper / Wall Shutter, 36-1/2 in x 36-1/2 in - 1C209

Dayton
SKU:
1C209
|
UPC:
190735131671
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
39 In.H-W 5.75 In.L Alu Wall Vent Shutter, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Galvanized Steel, Number of Panels 2, Maximum Air Velocity 2500 fpm, Overall Height 39 in, Rough Opening Diameter 36 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 36 in, For Duct Shape Not Applicable, Free Area 7.1 sq ft, Overall Width 39 in, Frame Material Thickness 20 ga, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 2 1/2 in
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
39H-W 5.75"L Alu Wall Vent Shutter"
Shutter Mounting Position:
Vertical
Shutter Mounting Location:
Wall
Shutter Construction Material:
G-90 Galvanized Steel Frame and Tie Rods
Shutter Free Area:
7.071 sq ft
Shutter Opening Required:
36-1/2 in x 36-1/2 in
Shutter Overall Size:
39 in x 39 in
Fits Fan Dia.:
36 in
Blade Material:
Aluminum
Max. Velocity:
2500 FPM
Frame Opening B:
36 in
Frame Depth:
2 1/2 in
Open Depth:
6 1/4 in
Shutter Item:
Backdraft Damper / Wall Shutter
Shutter Overall Square:
39 x 39""
Mounting Hole Size:
Prepunched
For Use With:
Vertical Mounted Exhaust Fans
Flange Width:
1 1/2 in
Frame Opening A:
36 in
Number of Panels:
2
Includes:
Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position:
Vertical
Overall Width:
39 in
Overall Height:
39 in
Overall Length:
5 3/4 in
Free Area:
7.1 sq ft
Counterbalanced:
Yes
Damper Finish:
Mill Finish
Maximum Ambient Temperature:
180 Degrees F
Blade Material Thickness:
26 ga
Fits Fan Diameter:
36 in
Overall Diameter:
39 in
ACMA Leakage Class:
Not Applicable
Rough Opening Diameter:
36 1/2 in
Tie-Rod Material:
Galvanized Steel Frame and Tie Rods
Frame Material:
Galvanized Steel
Switch Action:
Normally Closed
Single Acting/Double Acting:
Single Acting
Maximum Air Velocity:
2500 fpm
Flange Type:
Rear Flange
Frame Material Thickness:
20 ga
Frame Less Flange:
36
For Fuel Type:
Not Applicable
Closure Type:
Gravity
Blade Type:
Flat Blade
Blade Orientation:
Parallel Blades
Frame Opening Height:
36 in
Opening Type:
Gravity
Frame Opening Width:
36 in
Blade Seal Material:
Felt
Rough Opening Length:
36 1/2 in
Maximum Pressure:
1 in wc
Damper Type:
Static
Pressure Drop @ 1000 fpm (AMCA 5.2):
Not Applicable
Mounting Hole Diameter:
1/4 in
Closure Velocity Rating:
2,500 fpm
Fusible Link Temperature:
Not Applicable
Series:
556
Damper Application:
Backdraft
For Duct Shape:
Not Applicable
Connection Type:
Not Applicable
Airflow Direction:
Horizontal
Seal Material:
Not Applicable
Bushing Material:
Stainless Steel
Rough Opening Width:
36.5 in
For Nominal Duct Diameter:
Not Applicable
Rough Opening Shape:
Square
Package Quantity:
1
