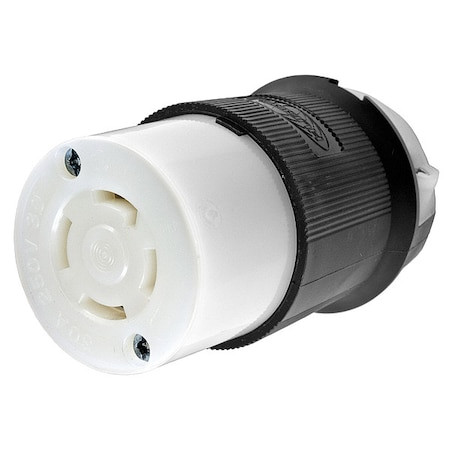

30A Twist-Lock Connector 3P 4W 250VAC L15-30R BK/WT - HBL2723

30A Twist-Lock Connector 3P 4W 250VAC L15-30R BK/WT - HBL2723

Hubbell
SKU:
HBL2723
|
UPC:
783585039251
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L15-30R, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in
Additional Information
Country of Origin:
United States
Item:
Locking Connector
Amps - Plugs and Receptacles:
30
NEMA Plug Configuration - Plugs and Receptacles:
L15-30R
Voltage:
250VAC
NEMA Configuration:
L15-30
Number of Poles:
3
Number of Wires:
4
Wiring Style:
Standard
Color:
Black/White
Grade - Plugs and Receptacles:
Industrial
Shrouded / Non-Shrouded:
Non-Shrouded
Material:
Nylon
Boot Code:
C
Standards:
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Cord Size:
0.350 in to 1.150 in
HP:
3.0
Antimicrobial:
No
Amps:
30
Phase:
Three
Corrosion Resistant:
No
Power Indicator:
No
Voltage - Plugs and Receptacles:
250V AC
Grade:
Industrial/Commercial
Color - Plugs and Receptacles:
Black/White
Item - Plugs and Receptacles:
Locking Connector
IP Rating:
IP20
Special Features:
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material:
Natural White Nylon
Current Rating:
30 A
Power Indicating Light:
No
For Location:
Indoor
Housing Color:
Black, White
Market:
Industrial
Maximum Wire Size:
8 AWG
UL 94 Flammability Rating:
HB
Midget Locking:
No
Cap Type:
No Cap or Cover
Shrouded:
No
For Environment:
Dry
Minimum Operating Temperature:
-40 Degrees C
Minimum Wire Size:
16 AWG
Overall Length:
2.33 in
Housing Material:
Nylon
Voltage Rating:
250V AC
NEMA Receptacle Configuration:
L15-30R
Grounding:
Grounded
Contact Material:
Brass
For Minimum Cable Diameter:
0.35 in
Wire Connection Type:
Screw Terminals
Resistance Properties:
Impact Resistant
For Maximum Cable Diameter:
1.15 in
Maximum Operating Temperature:
75 Degrees C
Connection Orientation:
Straight
Outside Diameter:
0.233 in
Horsepower Rating:
3 hp
Weight:
0.4
Dielectric Strength:
Withstands 2,000V minimum
Temp. Rise:
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Cord Dia. Range:
.350-1.150" (9-29)"
Flame Resistant:
HB or better per UL94 or CSA 22.2 No. 0.6
Package Quantity:
1
