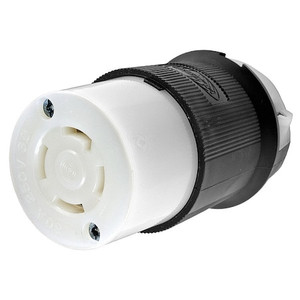

30A Twist-Lock Connector 3P 4W 125/250VAC L14-30R BK/WT - HBL2713

30A Twist-Lock Connector 3P 4W 125/250VAC L14-30R BK/WT - HBL2713

Hubbell
SKU:
HBL2713
|
UPC:
783585039176
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L14-30R, Number of Poles 3, Number of Wires 4, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in
Additional Information
Country of Origin:
United States
Item:
Locking Connector
Amps - Plugs and Receptacles:
30
NEMA Plug Configuration - Plugs and Receptacles:
L14-30R
Voltage:
125/250VAC
Number of Poles:
3
NEMA Configuration:
L14-30
Number of Wires:
4
Wiring Style:
Standard
Color:
Black/White
Grade - Plugs and Receptacles:
Industrial
Shrouded / Non-Shrouded:
Non-Shrouded
Power Indicator:
No
Cord Size:
0.350 in to 1.150 in
IP Rating:
IP20
Amps:
30
Antimicrobial:
No
Material:
Nylon
Item - Plugs and Receptacles:
Locking Connector
Corrosion Resistant:
No
Boot Code:
C
Color - Plugs and Receptacles:
Black/White
HP:
2.0
Grade:
Industrial/Commercial
Phase:
Single
Standards:
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Voltage - Plugs and Receptacles:
125/250V AC
Body Material:
Natural White Nylon
Special Features:
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
For Environment:
Dry
Wire Connection Type:
Screw Terminals
Minimum Operating Temperature:
-40 Degrees C
For Location:
Indoor
Grounding:
Grounded
For Minimum Cable Diameter:
0.35 in
Current Rating:
30 A
Voltage Rating:
125/250V AC
Maximum Wire Size:
8 AWG
Housing Material:
Nylon
Connection Orientation:
Straight
Shrouded:
No
Market:
Industrial
Minimum Wire Size:
16 AWG
UL 94 Flammability Rating:
HB
Horsepower Rating:
2 hp
Power Indicating Light:
No
Overall Length:
2.33 in
NEMA Receptacle Configuration:
L14-30R
Resistance Properties:
Impact Resistant
Midget Locking:
No
Outside Diameter:
2.33 in
Cap Type:
No Cap or Cover
For Maximum Cable Diameter:
1.15 in
Contact Material:
Brass
Housing Color:
Black, White
Maximum Operating Temperature:
75 Degrees C
Cord Dia. Range:
.350-1.150" (9-29)"
Dielectric Strength:
Withstands 2,000V minimum
Weight:
0.35
Temp. Rise:
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Flame Resistant:
HB or better per UL94 or CSA 22.2 No. 0.6
Package Quantity:
1
