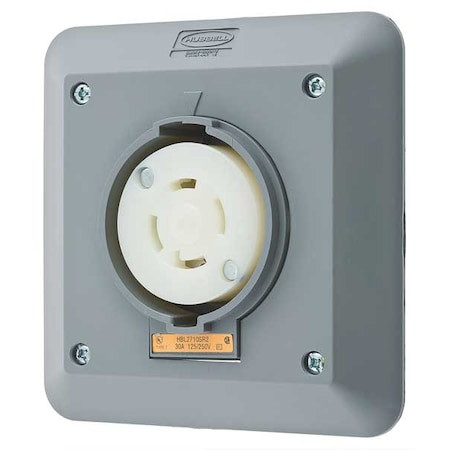

30A Locking Receptacle 3P 4W 125/250VAC L14-30R GY - HBL2710SR2

30A Locking Receptacle 3P 4W 125/250VAC L14-30R GY - HBL2710SR2

Hubbell
SKU:
HBL2710SR2
|
UPC:
783585234687
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Type Non-Flanged, Housing Color Gray, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L14-30R, Number of Gangs 2, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Shrouded Yes, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Flange Diameter Not Applicable
Additional Information
Country of Origin:
United States
Item:
Locking Receptacle
NEMA Configuration:
L14-30
Voltage:
125/250V AC
Amps:
30
Color:
Gray
Number of Poles:
3
Number of Wires:
4
Phase:
Single
Shrouded / Non-Shrouded:
Shrouded
Wiring Style:
Standard
Grade:
Industrial
NEMA Rating:
12, 4X
Special Features:
Corrosion resistant
Material:
Impact Modified PBT
Mounting Type:
Semi Flush Mount
IP Rating:
IP20
HP:
2.0
Standards:
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Flange Height:
Not Applicable
For Environment:
Dry
Flange Diameter:
Not Applicable
Market:
Industrial
Minimum Wire Size:
16 AWG
Maximum Operating Temperature:
75 Degrees C
Voltage Rating:
125/250V AC
Flange Width:
Not Applicable
Connection Orientation:
Straight
Minimum Operating Temperature:
-40 Degrees C
Grounding:
Grounded
Shrouded:
Yes
Housing Material:
Valox
Maximum Wire Size:
8 AWG
AFCI:
No
Number of Gangs:
2
Contact Material:
Brass
Flange Type:
Non-Flanged
NEMA Enclosure Rating:
1
Resistance Properties:
Corrosion Resistant, Impact Resistant
Housing Color:
Gray
NEMA Receptacle Configuration:
L14-30R
For Location:
Indoor
Polarized:
Yes
Current Rating:
30 A
Horsepower Rating:
2 hp
Wire Connection Type:
Screw Terminals
UL 94 Flammability Rating:
V-2
Cover Type:
No Cover
Weight (Lbs.):
0.55
Lock Type:
Twist-lock
Terminal Designations:
Terminals identified in accordance with UL 498
Flange Material:
Gray Valox 357U
Temp. Rise:
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Spring Material:
.031 Brass"
Wire Size:
#10 AWG
Flammability:
V2 or better per UL94/CSA 22.2 No.0.17
Operating Temp.:
Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact)
Mount Type:
Flush
Package Quantity:
1
