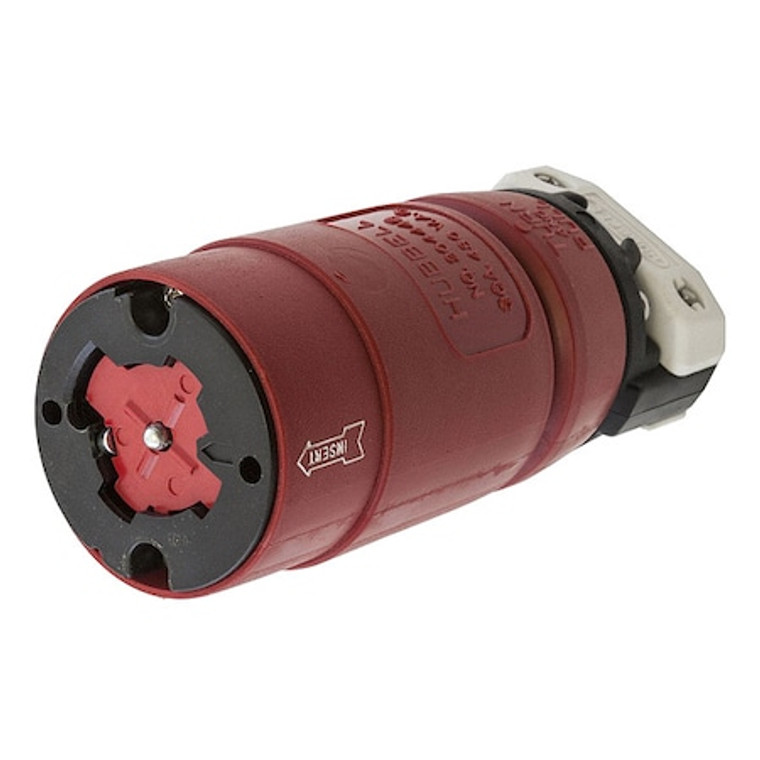

30A Locking Connector 3P 4W 480VAC RD - HBL20444B

30A Locking Connector 3P 4W 480VAC RD - HBL20444B

Hubbell
SKU:
HBL20444B
|
UPC:
783585017433
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Red, Housing Material Nylon, IP Rating IP30, NEMA Receptacle Configuration Non-NEMA, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Bronze, For Maximum Cable Diameter 1.2 in, For Minimum Cable Diameter 0.7 in
Additional Information
Country of Origin:
United States
Item:
Locking Connector
Amps - Plugs and Receptacles:
30
NEMA Plug Configuration - Plugs and Receptacles:
30A, Non-NEMA
Voltage:
480VAC
Number of Poles:
3
NEMA Configuration:
Non-NEMA
Number of Wires:
4
Wiring Style:
Standard
Color:
Red
Grade - Plugs and Receptacles:
Industrial
Shrouded / Non-Shrouded:
Non-Shrouded
Corrosion Resistant:
No
Item - Plugs and Receptacles:
Locking Connector
Amps:
30
Voltage - Plugs and Receptacles:
480V AC
Antimicrobial:
No
Grade:
Industrial/Commercial
IP Rating:
IP30
Standards:
CSA Certified C22.2 No. 42, UL 498
Power Indicator:
No
Cord Size:
0.630 in to 1.200 in
Material:
Nylon
Phase:
Three
Color - Plugs and Receptacles:
Red
Special Features:
Terminals identified in accordance with UL 498
Body Material:
Black Rynite
Minimum Wire Size:
10 AWG
For Maximum Cable Diameter:
1.2 in
Housing Color:
Red
Grounding:
Grounded
Maximum Operating Temperature:
75 Degrees C
Overall Length:
6 in
Maximum Wire Size:
6 AWG
Current Rating:
30 A
For Minimum Cable Diameter:
0.7 in
Contact Material:
Bronze
Connection Orientation:
Straight
Midget Locking:
No
Resistance Properties:
Impact Resistant
NEMA Receptacle Configuration:
Non-NEMA
Outside Diameter:
2.438 in
UL 94 Flammability Rating:
HB
Minimum Operating Temperature:
-40 Degrees C
For Location:
Indoor
Power Indicating Light:
No
Market:
Industrial
Cap Type:
No Cap or Cover
Voltage Rating:
480V AC
Housing Material:
Nylon
Shrouded:
No
Wire Connection Type:
Screw Terminals
For Environment:
Dry
Weight:
1.05
Temp. Rise:
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Cord Dia. Range:
.700-1.200" (17.78-30.5)"
Dielectric Strength:
2,000V minimum
Flame Resistant:
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Type:
Connector Body
OEM Brand Name:
Hubbell Wiring Device-Kellems
Voltage Rating Description:
480 VAC
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Height:
2.44 in
Material - Mounting Hardware:
Cord Mounted
Cable Range:
0.700 - 1.200 in
Dimensions:
6 in x 2.44 in x 2.44 in
Current / Amperage Rating:
30 A
Amperage Rating:
30 A
Item Type:
30A Grounding Hubbellock® Female Connector
Width:
2.44 in
Length:
6 in
Display Size:
Standard
Cord Range:
0.70-1.20" (17.78-30.5)"
Application:
Heavy Duty Industrial
Connectivity:
Pressure Terminal Screws
Industry Standard(s):
Certified to CSA C22.2 No.42 Listed to UL 498
Insulation:
Insulated Body
Wire Size:
#10 AWG to #6 AWG
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Con
Package Quantity:
1
