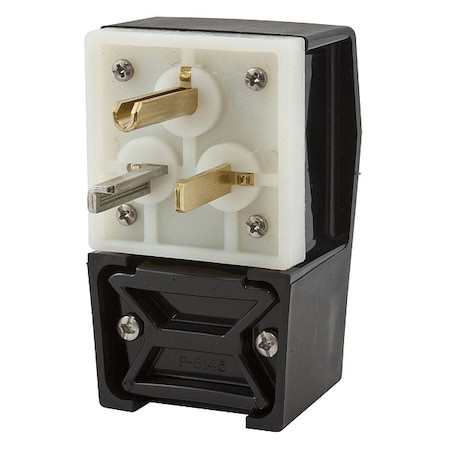

3 Wire Industrial Angle Straight Blade Plug 125VAC 30A - HBL9309

3 Wire Industrial Angle Straight Blade Plug 125VAC 30A - HBL9309

Hubbell
SKU:
HBL9309
|
UPC:
783585015224
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 5-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.187 in, For Minimum Cable Diameter 0.625 in
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Angle Straight Blade Plug
Item:
Angle Straight Blade Plug
Wiring Style:
Standard
Grade - Plugs and Receptacles:
Industrial
Amps - Plugs and Receptacles:
30 A
Voltage - Plugs and Receptacles:
125V AC
NEMA Plug Configuration - Plugs and Receptacles:
5-30P
Number of Wires:
3
Phase - Plugs and Receptacles:
1
Antimicrobial:
No
Color:
Black
Number of Poles:
2
Material:
Nylon
Color - Plugs and Receptacles:
Black
Amps:
30
Phase:
Single
Cord Size:
0.625 in to 1.187 in
Voltage:
125VAC
HP:
2.0
Corrosion Resistant:
Yes
Special Features:
Corrosion resistant
Grade:
Industrial
Standards:
CSA Certified, FULus, UL Listed
IP Rating:
IP20
Type:
Plug
NEMA Rating:
5-30P
For Maximum Cable Diameter:
1.187 in
Voltage Rating:
125V AC
Connection Orientation:
Angled
Housing Material:
Nylon
Minimum Wire Size:
12 AWG
Maximum Wire Size:
4 AWG
For Minimum Cable Diameter:
0.625 in
Body Length:
4.34 in
NEMA Plug Configuration:
5-30P
UL 94 Flammability Rating:
V-2
Current Rating:
30 A
Insulation Material:
Nylon
Horsepower Rating:
2 hp
Grounding:
Grounded
Wire Connection Type:
Screw Terminals
Number of Blades:
3
Maximum Operating Temperature:
167 Degrees F
Minimum Operating Temperature:
-40 Degrees F
Polarized:
Yes
Resistance Properties:
Corrosion Resistant
Housing Color:
Black
Market:
Commercial, Industrial
Temp. Rise:
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temp.:
Maximum continuous 75°C, minimum -40°C (w/o impact).
Flammability:
UL 94 HB
Contact Blades Material:
.060 Brass"
Box Terminals Material:
Brass
Retainer Material:
Reinforced Thermoplastic Polyester
Ground Contact Blade Material:
.078 Brass (.078")"
Ground Screw Material:
Plated Steel
Weight (Lbs.):
0.55
Body Style:
Angle
Dielectric Strength:
Withstands 2,000V minimum
Cord Clamp Material:
Reinforced Thermoplastic Polyester
Terminal Screw Material:
Steel - Zn plated
Blade Holder Material:
Reinforced Thermoplastic Polyester
Dimensions:
4.34 in x 2.75 in x 1.88 in
Wire Size:
#12 AWG to #4 AWG
Length:
4.34 in
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Voltage Rating Description:
125 V
Width:
2.75 in
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - IP Suitability - IP20 Environmental - Op
Amperage Rating:
30 A
Wattage:
3750 W
Current / Amperage Rating:
30 A
Horsepower - Maximum:
2
OEM Brand Name:
Hubbell Wiring Device-Kellems
Height:
1.88 in
Package Quantity:
1
