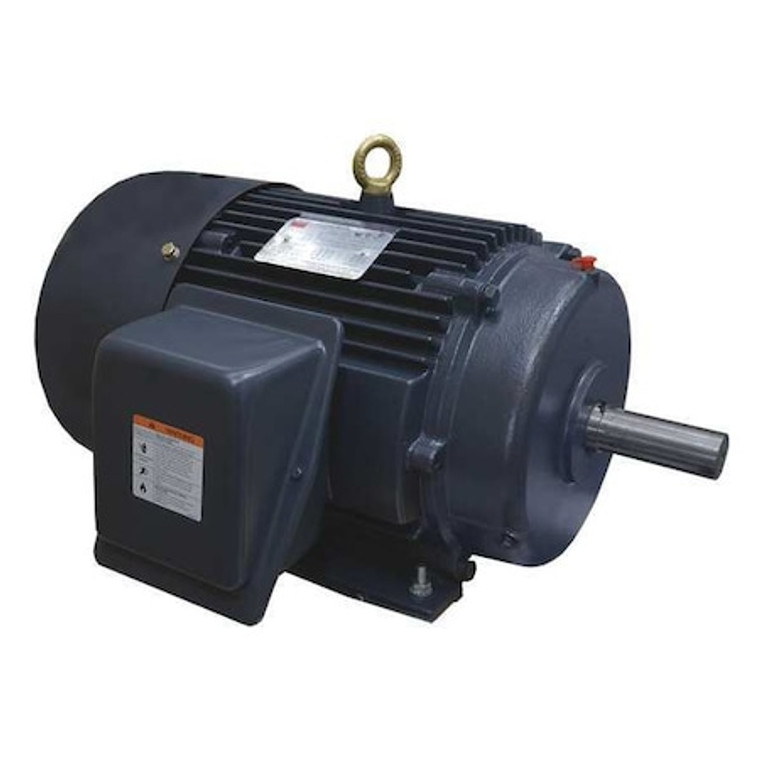

3-Phase General Purpose Motor, 7 1/2 hp HP, 254T Frame, 230/460V AC Voltage, 1165 Nameplate RPM - 194151.00
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
3-Phase General Purpose Motor, 7 1/2 hp HP, 254T Frame, 230/460V AC Voltage, 1165 Nameplate RPM - 194151.00
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 7 1/2 hp HP, Nameplate RPM 1165, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.9/10.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
- Country of Origin:
- Multiple
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 7 1/2 hp
- RPM Range:
- 1,101-1,200
- Voltage:
- 230/460V AC
- Frame:
- 254T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1165
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Cast Iron
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Motor Efficiency Group:
- NEMA Premium Efficient
- Ins. Class:
- F
- Length Less Shaft:
- 22 5/8 in
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Frame Material:
- Cast Iron
- Manufacturers Warranty Length:
- 3 yr
- Full Load Amps:
- 20.9/10.4 A
- No. of Speeds:
- 1
- Footnotes:
- 16
- Shaft Length:
- 4 in
- Overall Length:
- 23 11/16 in
- Motor Bearings:
- Ball
- Phase:
- Three
- Shaft Dia.:
- 1 5/8 in
- Hz:
- 60 Hz
- Duty:
- Continuous
- RPM Group:
- 1101-1200
- Max. Ambient Temp.:
- 40 Degrees C
- Nominal Efficiency:
- 91 %
- Inverter Rated:
- Yes
- CC Number:
- CC003A
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
