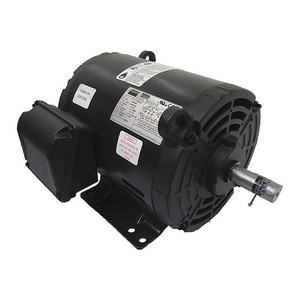

3-Phase General Purpose Motor, 7 1/2 hp HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM - 2N985

3-Phase General Purpose Motor, 7 1/2 hp HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM - 2N985

Dayton
SKU:
2N985
|
UPC:
190735228333
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 7 1/2 hp HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.8/9.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Rigid Base
HP:
7 1/2 hp
RPM Range:
1701-1800
Voltage:
230/460V AC
Frame:
254/6U
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1,770
Motor Shaft Rotation:
CW/CCW
Motor Frame Material:
Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Ins. Class:
F
Frame Material:
Steel
Overall Length:
21 13/16 in
Duty:
Continuous
Length Less Shaft:
18 1/16 in
Manufacturers Warranty Length:
3 yr
Max. Ambient Temp.:
40 Degrees C
Footnotes:
2,10,15
Phase:
Three
Full Load Amps:
18.8/9.4 A
RPM Group:
1701-1800
Hz:
60 Hz
Motor Efficiency Group:
NEMA Premium Efficient
Inverter Rated:
Yes
No. of Speeds:
1
CC Number:
CC029A
Nominal Efficiency:
91 %
Shaft Length:
3 3/4 in
Motor Bearings:
Ball
Shaft Dia.:
1 3/8 in
NEMA Design:
B
Duty Cycle:
Continuous
Package Quantity:
1
