3-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 208-230/460V AC Voltage, 3,540 Nameplate RPM - 36VF31
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

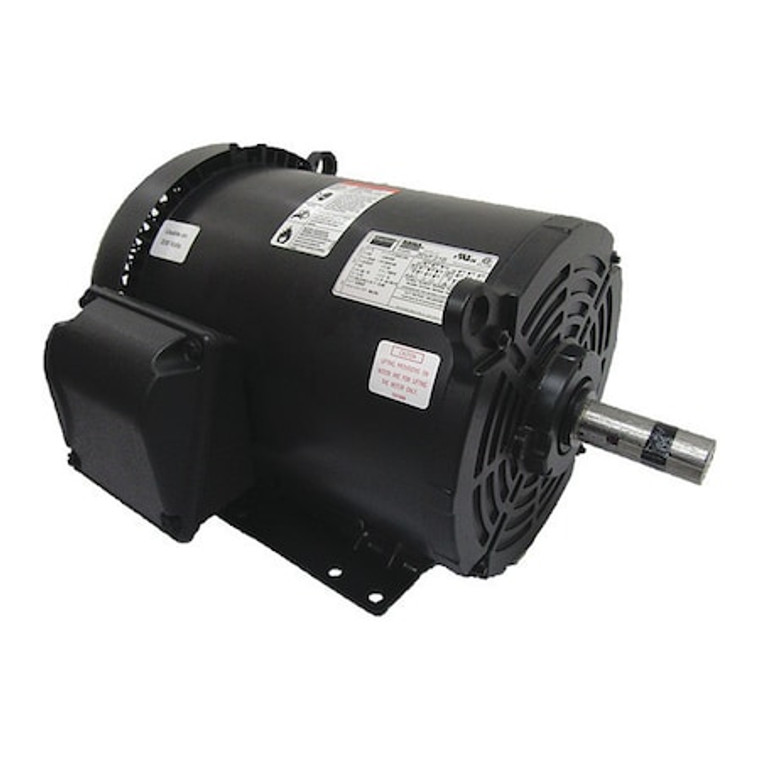

3-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 208-230/460V AC Voltage, 3,540 Nameplate RPM - 36VF31
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 7 1/2 hp HP, Nameplate RPM 3,540, Frame 213/5T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.6/8.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 7 1/2 hp
- RPM Range:
- 3001-3600
- Voltage:
- 208-230/460V AC
- Frame:
- 213/5T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3,540
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Includes:
- Conduit Box
- Hz:
- 60 Hz
- RPM Group:
- 3001-3600
- No. of Speeds:
- 1
- Motor Bearings:
- Ball
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Overall Length:
- 20 1/2 in
- Shaft Dia.:
- 1 3/8 in
- Length Less Shaft:
- 17 1/8 in
- Max. Ambient Temp.:
- 40 Degrees C
- Phase:
- Three
- Manufacturers Warranty Length:
- 1 yr
- Inverter Rated:
- Yes
- CC Number:
- CC029A
- Full Load Amps:
- 17.6/8.8 A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Frame Material:
- Rolled steel
- Duty:
- Continuous
- Footnotes:
- 2,15,53
- Ins. Class:
- F
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Nominal Efficiency:
- 90.2 %
- Shaft Length:
- 3 3/8 in
- Duty Cycle:
- Continuous
- Capacitor Required:
- No
- Package Quantity:
- 1
-
-
