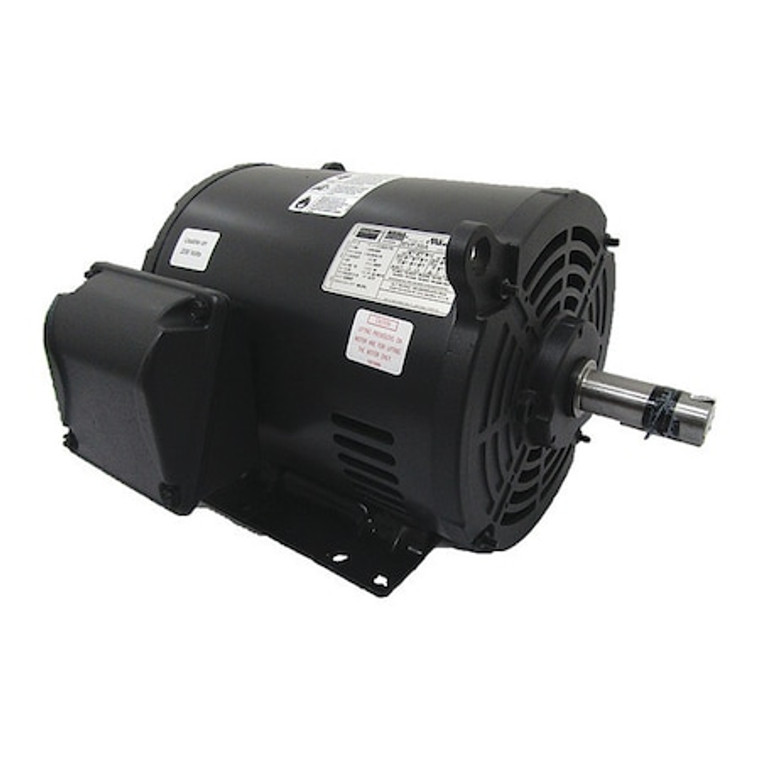

3-Phase General Purpose Motor, 5 HP, 213/5T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM - 36VF39

3-Phase General Purpose Motor, 5 HP, 213/5T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM - 36VF39

Dayton
SKU:
36VF39
|
UPC:
190735275719
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 5 HP, Nameplate RPM 1175, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.4/6.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Conduit Box
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Rigid Base
HP:
5
RPM Range:
1,101-1,200
Voltage:
230/460V AC
Frame:
213/5T
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1175
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal
Motor Frame Material:
Rolled Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Includes:
Conduit Box
Full Load Amps:
13.4/6.7 A
No. of Speeds:
1
RPM Group:
1101-1200
Inverter Rated:
Yes
Shaft Length:
3 3/8 in
Phase:
Three
Footnotes:
2,15,56
CC Number:
CC029A
Shaft Dia.:
1 3/8 in
Frame Material:
Rolled steel
Duty:
Continuous
Length Less Shaft:
13 5/8 in
Motor Efficiency Group:
NEMA Premium Efficient
Max. Ambient Temp.:
40 Degrees C
Ins. Class:
F
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Nominal Efficiency:
89.5 %
Motor Bearings:
Ball
Overall Length:
16 in
Manufacturers Warranty Length:
1 yr
Green Certification or Other Recognition:
NEMA Premium Rated
Hz:
60 Hz
Duty Cycle:
Continuous
Capacitor Required:
No
Package Quantity:
1
