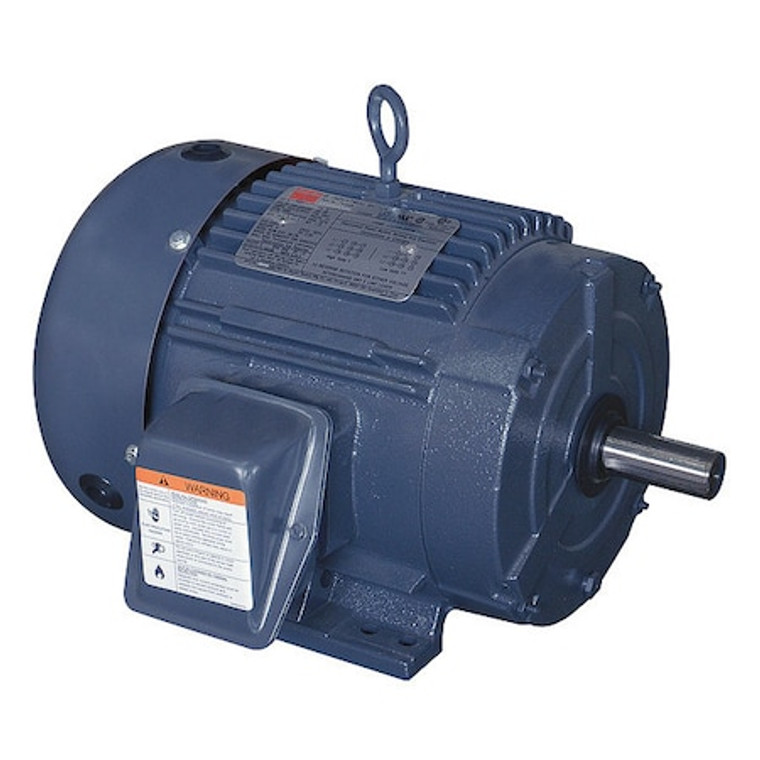

3-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1750 Nameplate RPM - 194147.00

3-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1750 Nameplate RPM - 194147.00

Dayton
SKU:
194147.00
|
UPC:
190735227602
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1750, Frame 184T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
Country of Origin:
Multiple
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Rigid Base
HP:
5
RPM Range:
1701-1800
Voltage:
230/460V AC
Frame:
184T
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1750
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal
Motor Frame Material:
Cast Iron
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Motor Efficiency Group:
NEMA Premium Efficient
Frame Material:
Cast Iron
RPM Group:
1701-1800
Green Certification or Other Recognition:
NEMA Premium Rated
Shaft Length:
2 3/4 in
Overall Length:
16 1/8 in
Length Less Shaft:
13 1/16 in
Nominal Efficiency:
89.5 %
Full Load Amps:
12.4/6.2 A
No. of Speeds:
1
Max. Ambient Temp.:
40 Degrees C
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Inverter Rated:
Yes
Ins. Class:
F
Manufacturers Warranty Length:
3 yr
Hz:
60 Hz
Motor Bearings:
Ball
Phase:
Three
CC Number:
CC003A
Footnotes:
16
Duty:
Continuous
Shaft Dia.:
1 1/8 in
Duty Cycle:
Continuous
Package Quantity:
1
