3-Phase General Purpose Motor, 5 HP, 182/4T Frame, 208-230/460V AC Voltage, 3,520 Nameplate RPM - 36VF37
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

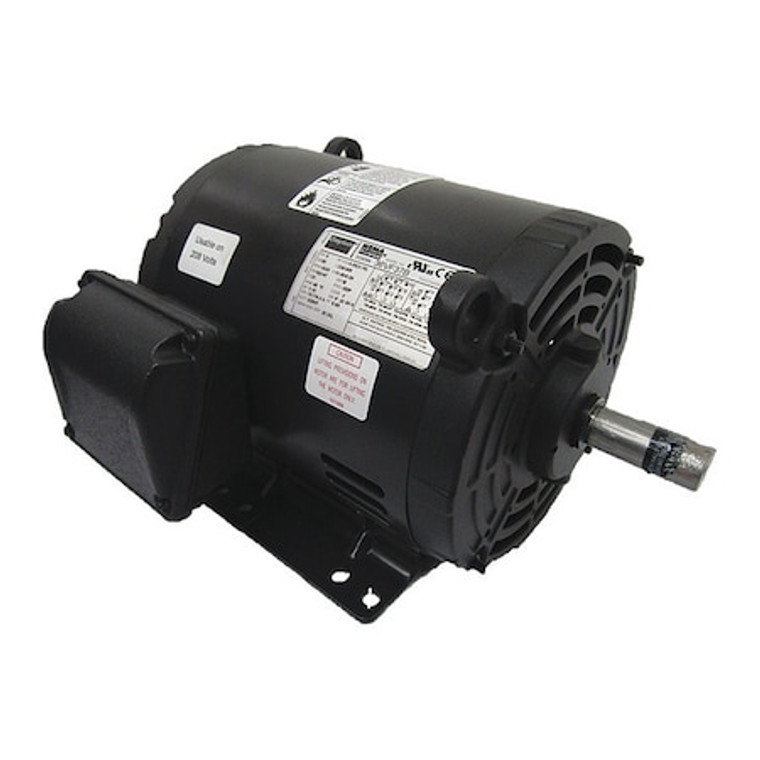

3-Phase General Purpose Motor, 5 HP, 182/4T Frame, 208-230/460V AC Voltage, 3,520 Nameplate RPM - 36VF37
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 5 HP, Nameplate RPM 3520, Frame 182/4T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.2/6.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Open Dripproof
- Motor Mounting Type:
- Rigid Base
- HP:
- 5
- RPM Range:
- 3001-3600
- Voltage:
- 208-230/460V AC
- Frame:
- 182/4T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3520
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Includes:
- Conduit Box
- Shaft Dia.:
- 1 1/8 in
- Frame Material:
- Rolled steel
- Length Less Shaft:
- 12 1/16 in
- Max. Ambient Temp.:
- 40 Degrees C
- RPM Group:
- 3001-3600
- Nominal Efficiency:
- 86.5 %
- No. of Speeds:
- 1
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Motor Bearings:
- Ball
- Full Load Amps:
- 12.2/6.1 A
- Overall Length:
- 14 3/4 in
- Hz:
- 60 Hz
- Ins. Class:
- F
- CC Number:
- CC029A
- Phase:
- Three
- Manufacturers Warranty Length:
- 1 yr
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Inverter Rated:
- Yes
- Footnotes:
- 2,15,56
- Duty:
- Continuous
- Motor Efficiency Group:
- NEMA Premium Efficient
- Shaft Length:
- 2 3/4 in
- Duty Cycle:
- Continuous
- Capacitor Required:
- No
- Package Quantity:
- 1
-
-
