3-Phase General Purpose Motor, 3 hp HP, 182T Frame, 230/460V AC Voltage, 1760 Nameplate RPM - 194145.00
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

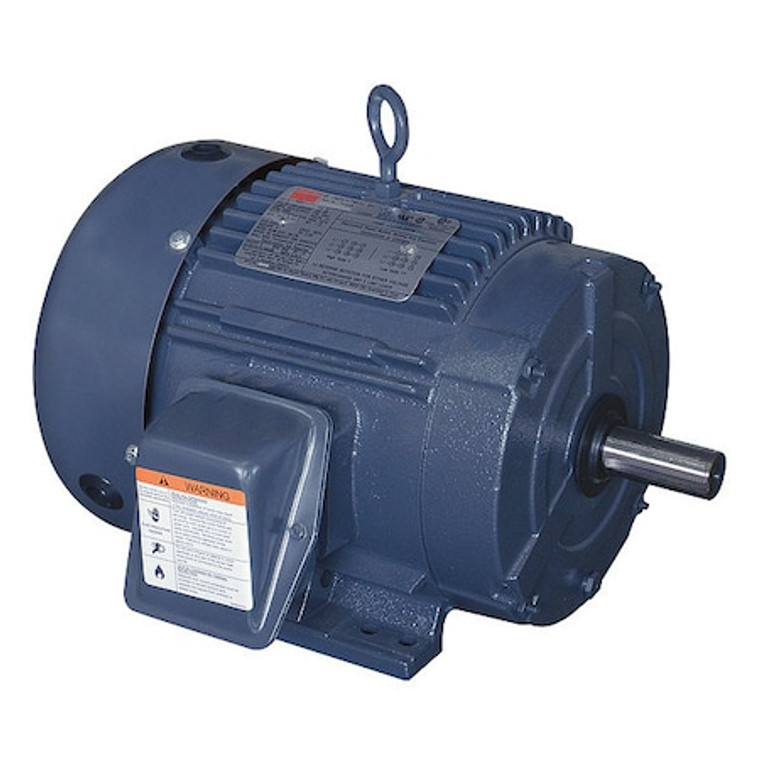

3-Phase General Purpose Motor, 3 hp HP, 182T Frame, 230/460V AC Voltage, 1760 Nameplate RPM - 194145.00
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 3 hp HP, Nameplate RPM 1760, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Multiple
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 3 hp
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 182T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1760
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Cast Iron
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- No. of Speeds:
- 1
- Ins. Class:
- F
- Motor Efficiency Group:
- NEMA Premium Efficient
- Manufacturers Warranty Length:
- 3 yr
- Overall Length:
- 15 1/8 in
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Shaft Length:
- 2 3/4 in
- Nominal Efficiency:
- 89.5 %
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Full Load Amps:
- 7.6/3.8 A
- Length Less Shaft:
- 12 1/16 in
- CC Number:
- CC003A
- Hz:
- 60 Hz
- Motor Bearings:
- Ball
- Footnotes:
- 16
- Frame Material:
- Cast Iron
- Max. Ambient Temp.:
- 40 Degrees C
- Inverter Rated:
- Yes
- Duty:
- Continuous
- Shaft Dia.:
- 1 1/8 in
- Phase:
- Three
- RPM Group:
- 1701-1800
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
