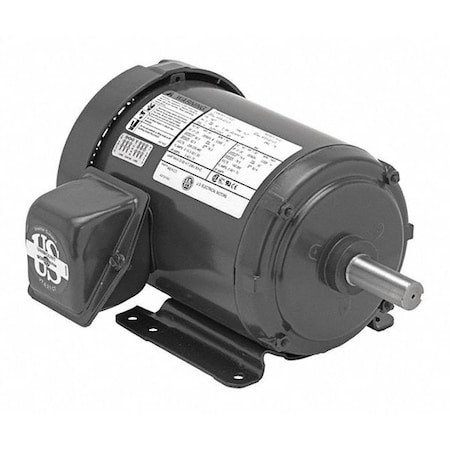

3-Phase General Purpose Motor, 3 hp HP, 145T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM - U3P1DF

3-Phase General Purpose Motor, 3 hp HP, 145T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM - U3P1DF

U.S. Motors
SKU:
U3P1DF
|
UPC:
786382093914
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 3 hp HP, Nameplate RPM 3600, Frame 145T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.1-7.2/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Rigid Base
HP:
3 hp
RPM Range:
3001-3600
Voltage:
208-230/460V AC
Frame:
145T
Motor Thermal Protection:
None
Motor Service Factor:
1.25
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
3600
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal or Vertical Shaft Down
Motor Frame Material:
Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Green Certification or Other Recognition:
NEMA Premium Rated
Motor Bearings:
Ball
CC Number:
CC030A
Shaft Length:
2 1/4 in
Frame Material:
Steel
No. of Speeds:
1
Footnotes:
5,10
Nominal Efficiency:
86.5 %
Manufacturers Warranty Length:
2 yr
Full Load Amps:
8.1-7.2/3.6 A
Overall Length:
13 in
RPM Group:
3001-3600
Shaft Dia.:
7/8 in
Phase:
Three
Length Less Shaft:
11 9/16 in
Max. Ambient Temp.:
40 Degrees C
Duty:
Continuous
Hz:
60/50 Hz
Motor Efficiency Group:
Energy Efficient
Ins. Class:
F
NEMA Design:
B
Duty Cycle:
Continuous
Package Quantity:
1
