3-Phase General Purpose Motor, 3 hp HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 3490 Nameplate RPM - 2NKY6
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

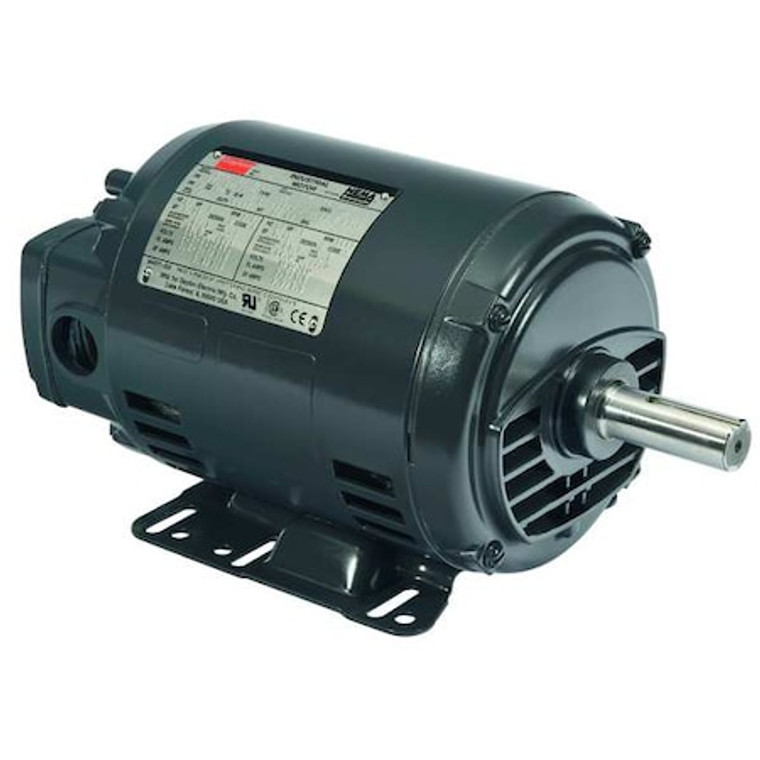

3-Phase General Purpose Motor, 3 hp HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 3490 Nameplate RPM - 2NKY6
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 3 hp HP, Nameplate RPM 3490, Frame 143-5T/56HZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.4/3.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Open Dripproof
- Motor Mounting Type:
- Rigid Base
- HP:
- 3 hp
- RPM Range:
- 3001-3600
- Voltage:
- 230/460V AC
- Frame:
- 143-5T/56HZ
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3490
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- All Angle
- Motor Frame Material:
- Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CSA, UL
- No. of Speeds:
- 1
- RPM Group:
- 3001-3600
- Motor Efficiency Group:
- NEMA Premium Efficient
- CC Number:
- CC030A
- Inverter Rated:
- Yes
- Hz:
- 60/50 Hz
- Duty:
- Continuous
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Footnotes:
- 5,10
- Length Less Shaft:
- 10 1/2 in
- Frame Material:
- Steel
- Max. Ambient Temp.:
- 40 Degrees C
- Nominal Efficiency:
- 85.5 %
- Ins. Class:
- F
- Phase:
- Three
- Manufacturers Warranty Length:
- 3 yr
- Shaft Dia.:
- 7/8 in
- Full Load Amps:
- 7.4/3.7 A
- Overall Length:
- 12 13/16 in
- Motor Bearings:
- Ball
- Shaft Length:
- 2 1/4 in
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
