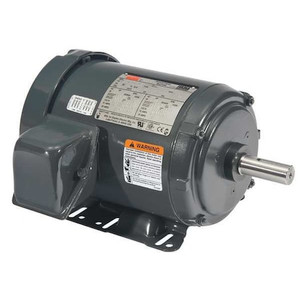

3-Phase General Purpose Motor, 3 hp HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage - 41D774

Dayton
SKU:
41D774
|
UPC:
190735298640
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 3 hp HP, Nameplate RPM 3510, Frame 143-5T/56HZ, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Rigid Base
HP:
3 hp
RPM Range:
3001-3600
Voltage:
208-230/460V AC
Frame:
143-5T/56HZ
Motor Thermal Protection:
None
Motor Service Factor:
1.25
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
3510
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal
Motor Frame Material:
Rolled Steel
Motor Shaft Design:
Keyed
Standards:
CSA, UL
CC Number:
CC060A
Hz:
60 Hz
Motor Bearings:
Ball
Nominal Efficiency:
86.5 %
RPM Group:
3001-3600
Shaft Dia.:
7/8 in
No. of Speeds:
1
Length Less Shaft:
11 3/4 in
Manufacturers Warranty Length:
1 yr
Green Certification or Other Recognition:
NEMA Premium Rated
Footnotes:
2,10,15
Phase:
Three
Motor Efficiency Group:
NEMA Premium Efficient
Frame Material:
Steel
Overall Length:
13 in
Max. Ambient Temp.:
40 Degrees C
Shaft Length:
2 in
Duty:
Continuous
Full Load Amps:
7.2/3.6 A
Ins. Class:
F
Duty Cycle:
Continuous
Package Quantity:
1
