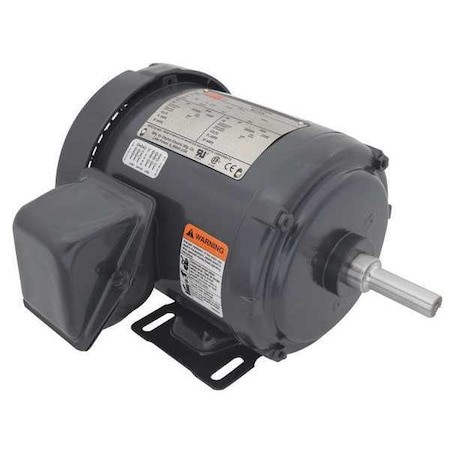

3-Phase General Purpose Motor, 3/4 hp HP, 56 Frame, 208-230/460V AC Voltage, 3500 Nameplate RPM - 3N443

3-Phase General Purpose Motor, 3/4 hp HP, 56 Frame, 208-230/460V AC Voltage, 3500 Nameplate RPM - 3N443

Dayton
SKU:
3N443
|
UPC:
190735292648
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 3/4 hp HP, Nameplate RPM 3500, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.4-2.2/1.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 3001-3600
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Rigid Base
HP:
3/4 hp
RPM Range:
3001-3600
Voltage:
208-230/460V AC
Frame:
56
Motor Thermal Protection:
None
Motor Service Factor:
1
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
3500
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
All Angle
Motor Frame Material:
Rolled Steel
Motor Shaft Design:
Keyed
Standards:
CSA Certified (191252), UL Recognized (E47479)
Hz:
60/50 Hz
No. of Speeds:
1
Shaft Dia.:
5/8 in
RPM Group:
3001-3600
Duty:
Continuous
Motor Efficiency Group:
Energy Efficient
Nominal Efficiency:
75.5 %
Manufacturers Warranty Length:
1 yr
Inverter Rated:
Yes
Shaft Length:
2 1/4 in
Ins. Class:
F
Phase:
Three
Overall Length:
11 11/16 in
Full Load Amps:
2.4-2.2/1.1 A
Length Less Shaft:
9 7/16 in
Motor Bearings:
Ball
Frame Material:
Steel
Max. Ambient Temp.:
40 Degrees C
Footnotes:
5,10
Duty Cycle:
Continuous
Package Quantity:
1
