3-Phase General Purpose Motor, 2 hp HP, 56HC Frame, 230/460V AC Voltage, 3480 Nameplate RPM - 36VF90
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

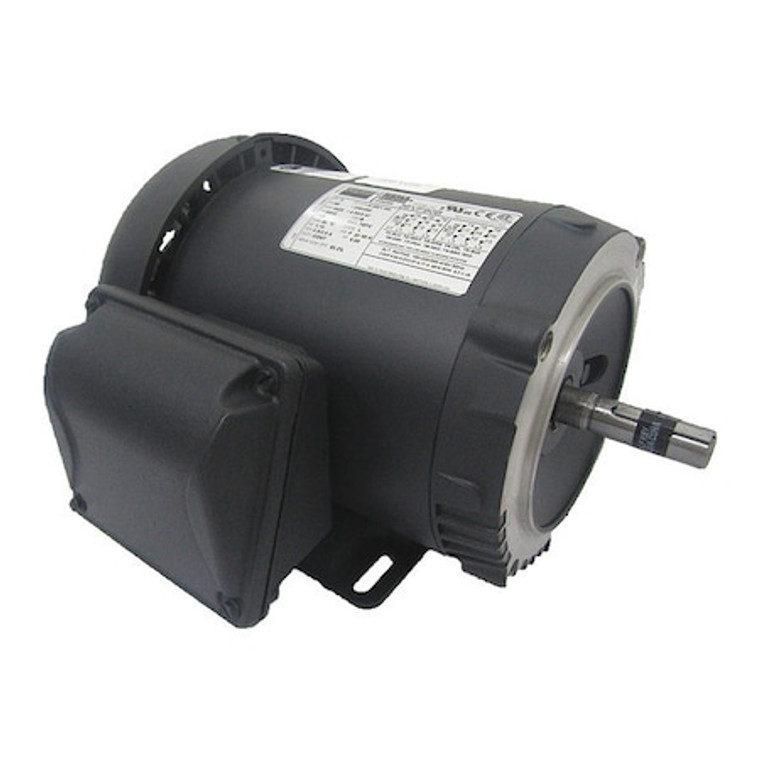

3-Phase General Purpose Motor, 2 hp HP, 56HC Frame, 230/460V AC Voltage, 3480 Nameplate RPM - 36VF90
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 2 hp HP, Nameplate RPM 3480, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.2/2.6 A, Face/Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Face/Base
- HP:
- 2 hp
- RPM Range:
- 3001-3600
- Voltage:
- 230/460V AC
- Frame:
- 56HC
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3480
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- CC Number:
- CC029A
- No. of Speeds:
- 1
- Length Less Shaft:
- 11 1/4 in
- Full Load Amps:
- 5.2/2.6 A
- Frame Material:
- Rolled steel
- RPM Group:
- 3001-3600
- Motor Efficiency Group:
- Premium Efficient
- Motor Bearings:
- Ball
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Footnotes:
- 2, 15, 53
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length:
- 1 7/8 in
- Shaft Dia.:
- 5/8 in
- Nominal Efficiency:
- 85.5 %
- Inverter Rated:
- Yes
- Overall Length:
- 13 1/8 in
- Duty:
- Continuous
- Hz:
- 60 Hz
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Ins. Class:
- F
- Manufacturers Warranty Length:
- 1 yr
- Phase:
- Three
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
