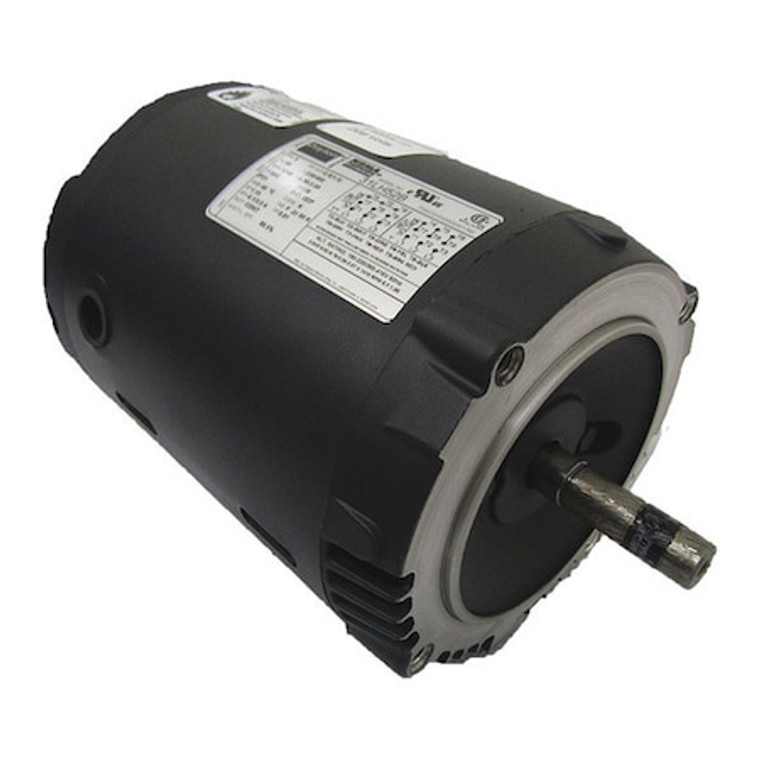

3-Phase General Purpose Motor, 2 hp HP, 56C Frame, 230/460V AC Voltage, 1740 Nameplate RPM - 31LH52

3-Phase General Purpose Motor, 2 hp HP, 56C Frame, 230/460V AC Voltage, 1740 Nameplate RPM - 31LH52

Dayton
SKU:
31LH52
|
UPC:
190735255193
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 2 hp HP, Nameplate RPM 1740, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Face
HP:
2 hp
RPM Range:
1701-1800
Voltage:
230/460V AC
Frame:
56C
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1740
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal
Motor Frame Material:
Rolled Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Includes:
MIMI 8S470A & Shaft Key
Duty:
Continuous
Motor Bearings:
Ball
Shaft Length:
1 7/8 in
No. of Speeds:
1
Nominal Efficiency:
86.5 %
Phase:
Three
Shaft Dia.:
5/8 in
Manufacturers Warranty Length:
1 yr
Frame Material:
Rolled steel
CC Number:
CC029A
Ins. Class:
F
Motor Efficiency Group:
NEMA Premium Efficient
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Inverter Rated:
Yes
Full Load Amps:
5.4/2.7 A
Hz:
60 Hz
RPM Group:
1701-1800
Max. Ambient Temp.:
40 Degrees C
Footnotes:
15,16
Green Certification or Other Recognition:
NEMA Premium Rated
Overall Length:
13 1/16 in
Length Less Shaft:
10 in
Capacitor Required:
No
Duty Cycle:
Continuous
Package Quantity:
1
