3-Phase General Purpose Motor, 2 hp HP, 182/4 Frame, 208-230/460V AC Voltage, 3510 Nameplate RPM - 36VF26
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

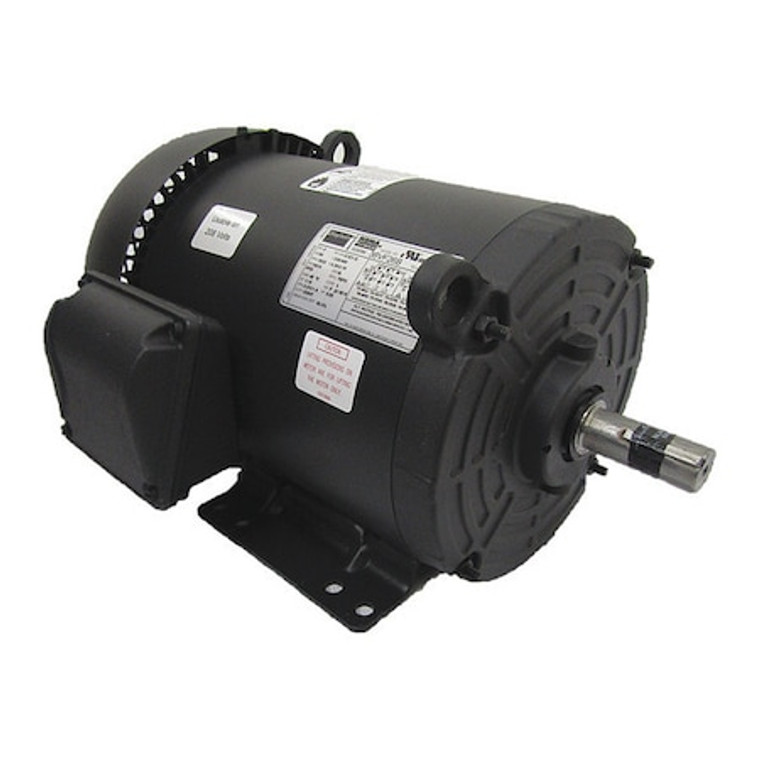

3-Phase General Purpose Motor, 2 hp HP, 182/4 Frame, 208-230/460V AC Voltage, 3510 Nameplate RPM - 36VF26
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 2 hp HP, Nameplate RPM 3510, Frame 182/4, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 2 hp
- RPM Range:
- 3001-3600
- Voltage:
- 208-230/460V AC
- Frame:
- 182/4
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3510
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Includes:
- Conduit Box
- CC Number:
- CC029A
- Ins. Class:
- F
- Motor Bearings:
- Ball
- RPM Group:
- 3001-3600
- Max. Ambient Temp.:
- 40 Degrees C
- Length Less Shaft:
- 13 5/8 in
- Full Load Amps:
- 5.4/2.7 A
- Inverter Rated:
- Yes
- Overall Length:
- 15 7/8 in
- Shaft Dia.:
- 7/8 in
- Footnotes:
- 2,15,53
- Phase:
- Three
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Hz:
- 60 Hz
- Duty:
- Continuous
- Manufacturers Warranty Length:
- 1 yr
- Frame Material:
- Rolled steel
- Motor Efficiency Group:
- NEMA Premium Efficient
- Nominal Efficiency:
- 84 %
- No. of Speeds:
- 1
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Shaft Length:
- 2 1/4 in
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
