3-Phase General Purpose Motor, 2 hp HP, 145T Frame, 230/460V AC Voltage, 3480 Nameplate RPM - 194178.00
Manufacturer: Dayton
MFR # 194178.00
Log in for pricing
3-Phase General Purpose Motor, 2 hp HP, 145T Frame, 230/460V AC Voltage, 1730 Nameplate RPM - 194179.00
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

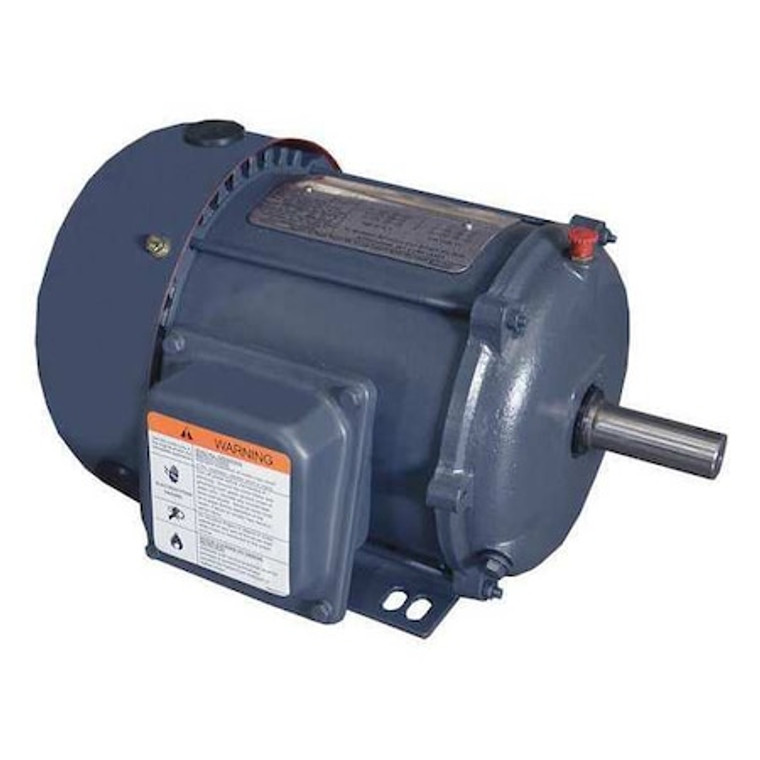

3-Phase General Purpose Motor, 2 hp HP, 145T Frame, 230/460V AC Voltage, 1730 Nameplate RPM - 194179.00
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 2 hp HP, Nameplate RPM 1730, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Multiple
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 2 hp
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 145T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1730
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Cast Iron
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Frame Material:
- Cast Iron
- Shaft Dia.:
- 7/8 in
- Footnotes:
- 12
- RPM Group:
- 1701-1800
- Max. Ambient Temp.:
- 40 Degrees C
- Nominal Efficiency:
- 86.5 %
- Duty:
- Continuous
- Manufacturers Warranty Length:
- 3 yr
- Length Less Shaft:
- 11 15/16 in
- Full Load Amps:
- 5.0/2.5 A
- Green Certification or Other Recognition:
- NEMA Premium Rated
- No. of Speeds:
- 1
- Ins. Class:
- F
- Phase:
- Three
- Hz:
- 60 Hz
- Inverter Rated:
- Yes
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Shaft Length:
- 2 1/4 in
- Overall Length:
- 14 3/16 in
- CC Number:
- CC003A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Motor Bearings:
- Ball
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
3-Phase General Purpose Motor, 3 hp HP, 145T Frame, 208-230/460V AC Voltage, 3600 Nameplate RPM - U3P1DF
Manufacturer: U.S. Motors
MFR # U3P1DF
Log in for pricing
-
3-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1740 Nameplate RPM - 194177.00
Manufacturer: Dayton
MFR # 194177.00
Log in for pricing
-
3-Phase General Purpose Motor, 2 hp HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM - 31TT22
Manufacturer: Dayton
MFR # 31TT22
Log in for pricing
