3-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1,755 Nameplate RPM - 36VF33
Manufacturer: Dayton
MFR # 36VF33
Log in for pricing
3-Phase General Purpose Motor, 10 hp HP, 213/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM - 4GYZ7
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

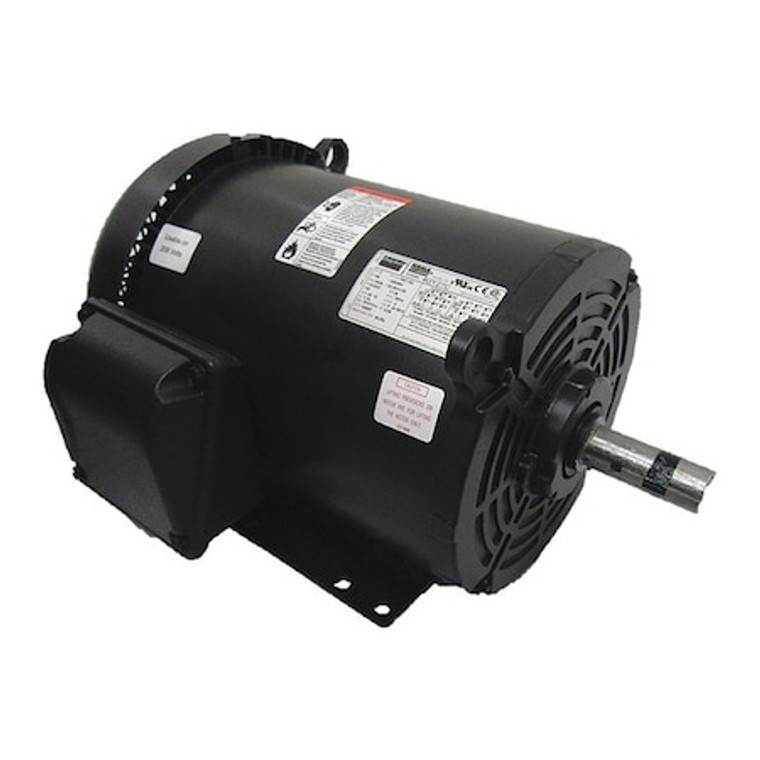

3-Phase General Purpose Motor, 10 hp HP, 213/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM - 4GYZ7
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 10 hp HP, Nameplate RPM 3485, Frame 213/5T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.9/12.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 10 hp
- RPM Range:
- 3001-3600
- Voltage:
- 208-230/460V AC
- Frame:
- 213/5T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3485
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Shaft Dia.:
- 1 3/8 in
- Full Load Amps:
- 23.9/12.0 A
- RPM Group:
- 3001-3600
- Manufacturers Warranty Length:
- 3 yr
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Nominal Efficiency:
- 91 %
- CC Number:
- CC029A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Frame Material:
- Steel
- Ins. Class:
- F
- Shaft Length:
- 3 3/8 in
- Motor Bearings:
- Ball
- Inverter Rated:
- Yes
- Phase:
- Three
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Footnotes:
- 3,16
- Overall Length:
- 20 1/2 in
- No. of Speeds:
- 1
- Duty:
- Continuous
- Length Less Shaft:
- 17 1/8 in
- Max. Ambient Temp.:
- 40 Degrees C
- Hz:
- 60 Hz
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
3-Phase General Purpose Motor, 5 HP, 213/5T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM - 36VF39
Manufacturer: Dayton
MFR # 36VF39
Log in for pricing
-
3-Phase General Purpose Motor, 2 hp HP, 143/5T Frame, 208-230/460V AC Voltage, 1745 Nameplate RPM - 53DD28
Manufacturer: Dayton
MFR # 53DD28
Log in for pricing
-
3-Phase General Purpose Motor, 2 hp HP, 213/5 Frame, 208-230/460V AC Voltage, 1175 Nameplate RPM - 2N943
Manufacturer: Dayton
MFR # 2N943
Log in for pricing
