3-Phase General Purpose Motor, 5 HP, 213/5T Frame, 230/460V AC Voltage, 1,175 Nameplate RPM - 36VF39
Manufacturer: Dayton
MFR # 36VF39
Log in for pricing
3-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1,755 Nameplate RPM - 36VF33
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

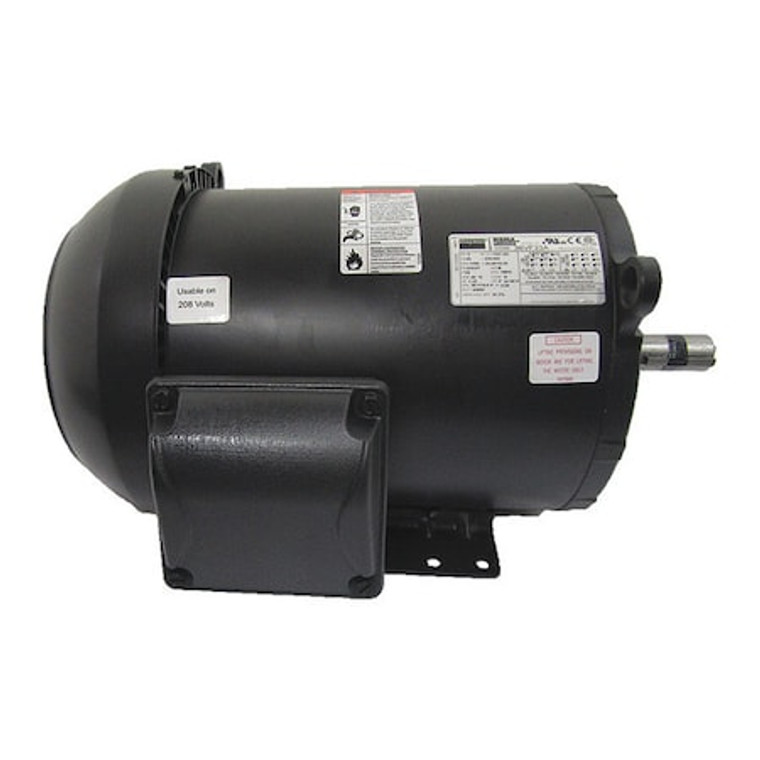

3-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1,755 Nameplate RPM - 36VF33
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 10 hp HP, Nameplate RPM 1755, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.4/12.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 10 hp
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 213/5T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1755
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Includes:
- Conduit Box
- Hz:
- 60 Hz
- Shaft Length:
- 3 3/8 in
- Frame Material:
- Rolled steel
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Ins. Class:
- F
- Inverter Rated:
- Yes
- Overall Length:
- 19 5/16 in
- Manufacturers Warranty Length:
- 1 yr
- Footnotes:
- 2,15,55
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Max. Ambient Temp.:
- 40 Degrees C
- RPM Group:
- 1701-1800
- Duty:
- Continuous
- Phase:
- Three
- Full Load Amps:
- 24.4/12.2 A
- Shaft Dia.:
- 1 3/8 in
- Motor Bearings:
- Ball
- Motor Efficiency Group:
- NEMA Premium Efficient
- Length Less Shaft:
- 15 15/16 in
- Nominal Efficiency:
- 91.7 %
- No. of Speeds:
- 1
- CC Number:
- CC029A
- Duty Cycle:
- Continuous
- Capacitor Required:
- No
- Package Quantity:
- 1
-
-
3-Phase General Purpose Motor, 10 hp HP, 213/5T Frame, 208-230/460V AC Voltage, 3485 Nameplate RPM - 4GYZ7
Manufacturer: Dayton
MFR # 4GYZ7
Log in for pricing
-
3-Phase General Purpose Motor, 7 1/2 HP, 213/5T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM - 36VF41
Manufacturer: Dayton
MFR # 36VF41
Log in for pricing
-
General Purpose Farm Duty Motor, 3-Phase, 1 HP, 230/460V AC, 1,755 Nameplate RPM, 143-5T/56HZT Frame - 35Z916
Manufacturer: Dayton
MFR # 35Z916
Log in for pricing
