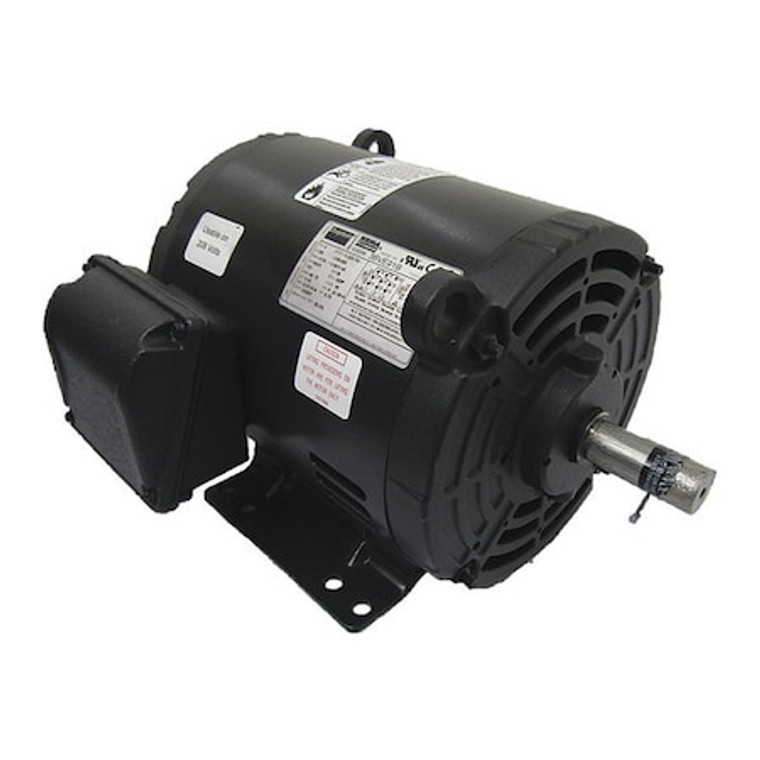

3-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM - 36VE91

3-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM - 36VE91

Dayton
SKU:
36VE91
|
UPC:
190735275252
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 1 HP, Nameplate RPM 1,770, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.7/1.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Conduit Box
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Rigid Base
HP:
1
RPM Range:
1701-1800
Voltage:
230/460V AC
Frame:
182/4
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1,770
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
Horizontal
Motor Frame Material:
Rolled Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Includes:
Conduit Box
Motor Efficiency Group:
NEMA Premium Efficient
Nominal Efficiency:
85.5 %
Ins. Class:
F
Hz:
60 Hz
Manufacturers Warranty Length:
1 yr
Frame Material:
Rolled steel
Duty:
Continuous
No. of Speeds:
1
Motor Bearings:
Ball
Inverter Rated:
Yes
RPM Group:
1701-1800
CC Number:
CC029A
Shaft Dia.:
7/8 in
Green Certification or Other Recognition:
NEMA Premium Rated
Max. Ambient Temp.:
40 Degrees C
Phase:
Three
Footnotes:
2,15,56
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Shaft Length:
2 1/4 in
Length Less Shaft:
12 1/16 in
Overall Length:
14 1/4 in
Full Load Amps:
2.7/1.3 A
Capacitor Required:
No
Duty Cycle:
Continuous
Package Quantity:
1
