3-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage, 3525 Nameplate RPM - 31TU31
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

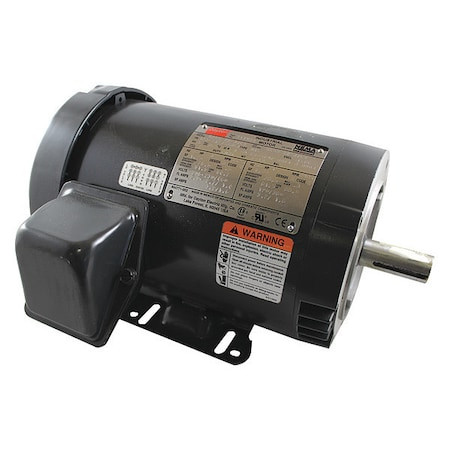

3-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage, 3525 Nameplate RPM - 31TU31
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 3525, Frame 143-5TC/56HCZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.7/1.4 A, Face/Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, Continuous Duty, 3001-3600
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Face/Base
- HP:
- 1
- RPM Range:
- 3001-3600
- Voltage:
- 230/460V AC
- Frame:
- 143-5TC/56HCZ
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3525
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- All Angle
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CSA (258525), UL (E47479)
- Includes:
- Dayton Integral & Fractional HP Motor Installation Guide
- Max. Ambient Temp.:
- 40 Degrees C
- Ins. Class:
- F
- Overall Length:
- 13 1/8 in
- Full Load Amps:
- 2.7/1.4 A
- Motor Bearings:
- Ball
- CC Number:
- CC030A
- No. of Speeds:
- 1
- Manufacturers Warranty Length:
- 1 yr
- RPM Group:
- 3001-3600
- Shaft Length:
- 2 1/8 in
- Footnotes:
- 12,15
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Phase:
- Three
- Frame Material:
- Rolled steel
- Nominal Efficiency:
- 81.5 %
- Hz:
- 60 Hz
- Shaft Dia.:
- 7/8 in
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Motor Efficiency Group:
- NEMA Premium Efficient
- Length Less Shaft:
- 10 3/4 in
- Duty:
- Continuous
- Inverter Rated:
- Yes
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Shop By:
- Closeouts
- Package Quantity:
- 1
-
-
