3-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1755 Nameplate RPM - 2NKX4
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

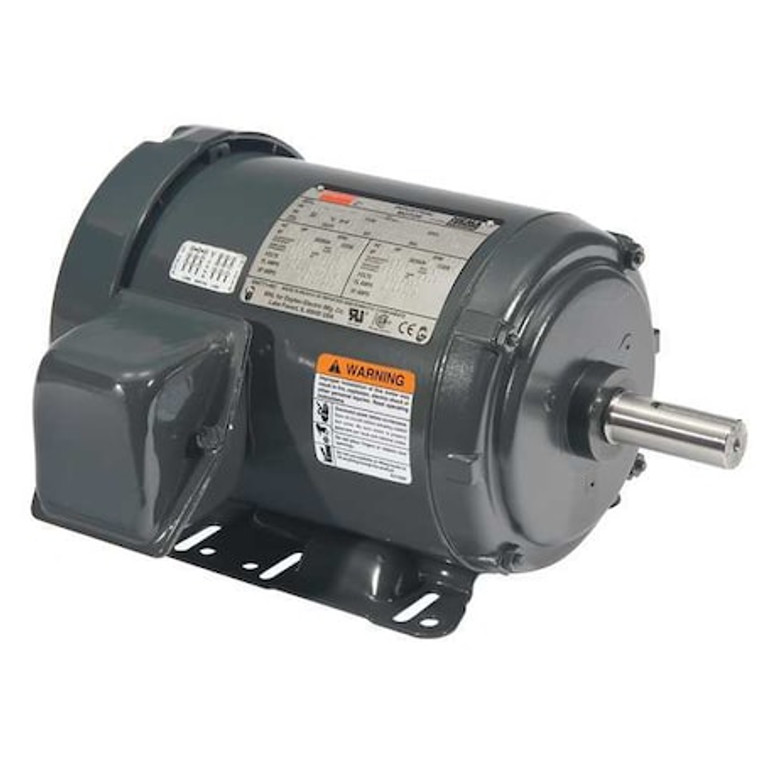

3-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1755 Nameplate RPM - 2NKX4
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1755, Frame 143-5T/56HZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 1
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 143-5T/56HZ
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.25
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1755
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- All Angle
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CSA(258525), UL(E47479)
- Length Less Shaft:
- 10 5/8 in
- Phase:
- Three
- Duty:
- Continuous
- Manufacturers Warranty Length:
- 3 yr
- Ins. Class:
- F
- Overall Length:
- 13 in
- Shaft Dia.:
- 7/8 in
- Hz:
- 60/50 Hz
- Frame Material:
- Steel
- Full Load Amps:
- 3.0/1.5 A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Nominal Efficiency:
- 85.5 %
- Footnotes:
- 5,10
- RPM Group:
- 1701-1800
- No. of Speeds:
- 1
- Inverter Rated:
- Yes
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Motor Bearings:
- Ball
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- CC Number:
- CC030A
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length:
- 2 3/8 in
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
