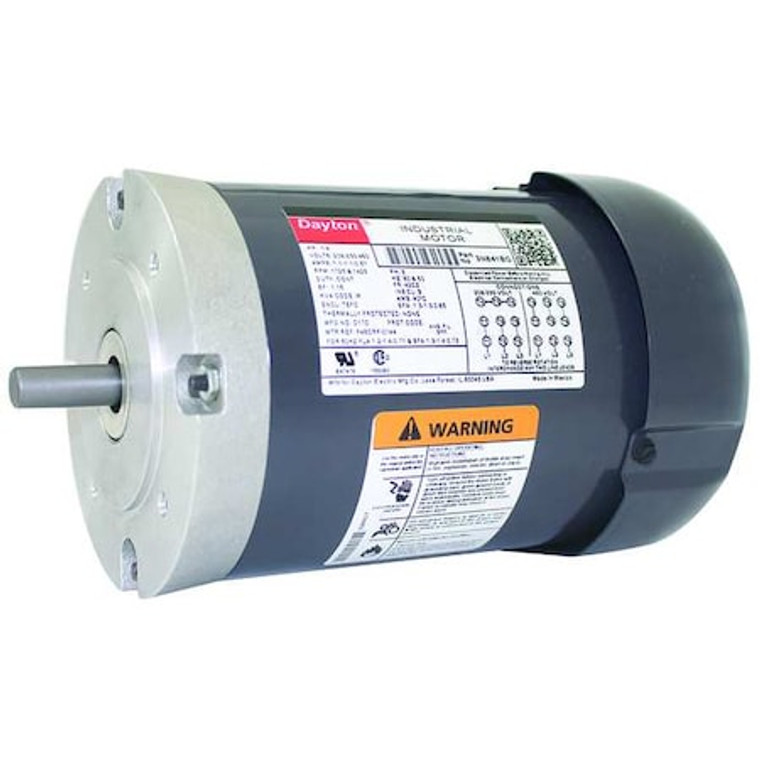

3-Phase General Purpose Motor, 1/4 HP, 42CZ Frame, 230/460V AC Voltage, 1,725 Nameplate RPM - 3N841

3-Phase General Purpose Motor, 1/4 HP, 42CZ Frame, 230/460V AC Voltage, 1,725 Nameplate RPM - 3N841

Dayton
SKU:
3N841
|
UPC:
190735292730
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,725, Frame 42CZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.2/0.60 A, Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 66 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Face
HP:
1/4
RPM Range:
1701-1800
Voltage:
230/460V AC
Frame:
42CZ
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1,725
Motor Shaft Rotation:
CW/CCW
Motor Mounting Position:
All Angle
Motor Frame Material:
Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Nominal Efficiency:
66 %
Frame Material:
Steel
Shaft Dia.:
1/2 in
Length Less Shaft:
8 1/16 in
Phase:
Three
Inverter Rated:
Yes
No. of Speeds:
1
Manufacturers Warranty Length:
1 yr
RPM Group:
1701-1800
Full Load Amps:
1.2/0.60 A
Overall Length:
9 3/16 in
Ins. Class:
B
Motor Bearings:
Ball
Shaft Length:
1 1/8 in
Duty:
Continuous
Footnotes:
3
Motor Efficiency Group:
Standard Efficient
Hz:
60/50 Hz
Max. Ambient Temp.:
40 Degrees C
NEMA Design:
B
Duty Cycle:
Continuous
Package Quantity:
1
