3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM - 31LH40
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

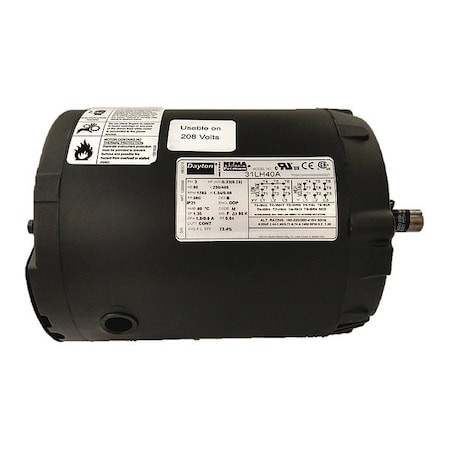

3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM - 31LH40
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 1/3 HP, Nameplate RPM 1765, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.3/0.68 A, Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Open Dripproof
- Motor Mounting Type:
- Face
- HP:
- 1/3
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 56C
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.35
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1765
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Includes:
- MIMI 8S470A & Shaft Key
- Manufacturers Warranty Length:
- 1 yr
- Max. Ambient Temp.:
- 40 Degrees C
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Frame Material:
- Rolled steel
- Overall Length:
- 10 5/16 in
- Hz:
- 60 Hz
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Duty:
- Continuous
- Ins. Class:
- F
- Inverter Rated:
- Yes
- Length Less Shaft:
- 8 1/4 in
- Full Load Amps:
- 1.3/0.68 A
- Phase:
- Three
- Shaft Length:
- 1 7/8 in
- Nominal Efficiency:
- 73.4 %
- Footnotes:
- 15,16
- Shaft Dia.:
- 5/8 in
- Motor Efficiency Group:
- Premium Efficient
- Motor Bearings:
- Ball
- RPM Group:
- 1701-1800
- No. of Speeds:
- 1
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
