3-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM - 3N854
Manufacturer: Dayton
MFR # 3N854
Log in for pricing
3-Phase General Purpose Motor, 1/3 HP, 48 Frame, 230/460V AC Voltage, 3,450 Nameplate RPM - 20CL65
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

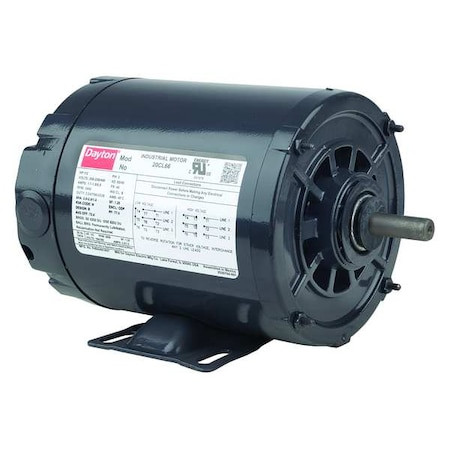

3-Phase General Purpose Motor, 1/3 HP, 48 Frame, 230/460V AC Voltage, 3,450 Nameplate RPM - 20CL65
General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 1/3 HP, Nameplate RPM 3,450, Frame 48, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.4/0.70 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 3001-3600, UL Recognized for US and Canada (E47479)
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Open Dripproof
- Motor Mounting Type:
- Rigid Base
- HP:
- 1/3
- RPM Range:
- 3001-3600
- Voltage:
- 230/460V AC
- Frame:
- 48
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.35
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 3,450
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal or Vertical Shaft Down
- Motor Frame Material:
- Steel
- Motor Shaft Design:
- Flat
- Standards:
- UL Recognized for US and Canada (E47479)
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length:
- 1 1/2 in
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Footnotes:
- 5,10
- Nominal Efficiency:
- 69.5 %
- Motor Bearings:
- Ball
- Phase:
- Three
- Hz:
- 60/50 Hz
- Motor Efficiency Group:
- Premium Efficient
- RPM Group:
- 3001-3600
- Length Less Shaft:
- 7 3/4 in
- Overall Length:
- 9 5/16 in
- Green Certification or Other Recognition:
- Energy Aware
- Frame Material:
- Steel
- Full Load Amps:
- 1.4/0.70 A
- Duty:
- Continuous
- Ins. Class:
- B
- Manufacturers Warranty Length:
- 1 yr
- Shaft Dia.:
- 1/2 in
- No. of Speeds:
- 1
- Inverter Rated:
- Yes
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
3-Phase General Purpose Motor, 1/2 hp HP, 48 Frame, 230/460V AC Voltage, 3,450 Nameplate RPM - 20CL66
Manufacturer: Dayton
MFR # 20CL66
Log in for pricing
-
3-Phase General Purpose Motor, 1/2 hp HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM - 10C901
Manufacturer: Dayton
MFR # 10C901
Log in for pricing
-
3-Phase General Purpose Motor, 2 hp HP, 143/5TC Frame, 230/460V AC Voltage, 3,450 Nameplate RPM - 36VF12
Manufacturer: Dayton
MFR # 36VF12
Log in for pricing
