3-Phase General Purpose Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1760 Nameplate RPM - 36VF58
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

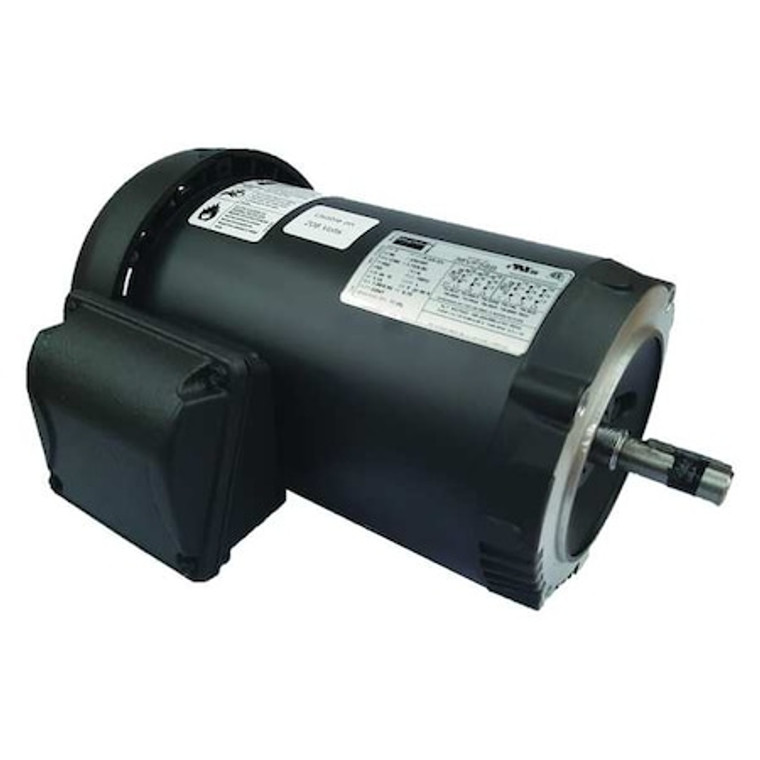

3-Phase General Purpose Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1760 Nameplate RPM - 36VF58
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1/2 hp HP, Nameplate RPM 1760, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.7/0.86 A, Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Face
- HP:
- 1/2 hp
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 56C
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1760
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Full Load Amps:
- 1.7/0.86 A
- Nominal Efficiency:
- 77 %
- Length Less Shaft:
- 9 11/16 in
- RPM Group:
- 1701-1800
- Motor Bearings:
- Ball
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Dia.:
- 5/8 in
- Motor Efficiency Group:
- Energy Efficient
- Footnotes:
- 2, 15, 56
- No. of Speeds:
- 1
- Shaft Length:
- 1 7/8 in
- Overall Length:
- 11 9/16 in
- Duty:
- Continuous
- Ins. Class:
- F
- Phase:
- Three
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Frame Material:
- Rolled steel
- Manufacturers Warranty Length:
- 1 yr
- Hz:
- 60 Hz
- Inverter Rated:
- Yes
- Capacitor Required:
- No
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
