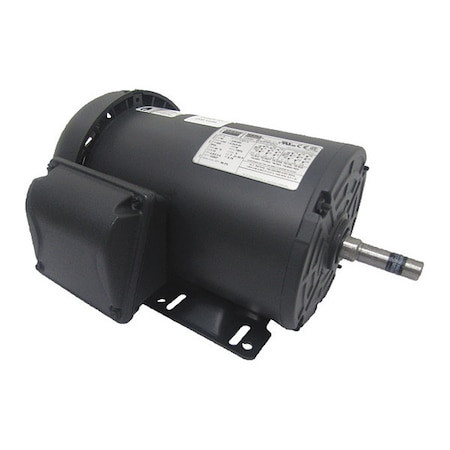

3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1730 Nameplate RPM - 6VPF0

3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1730 Nameplate RPM - 6VPF0

Dayton
SKU:
6VPF0
|
UPC:
190735371756
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1730, Frame 56H, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.1/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Rigid Base
HP:
1 1/2
RPM Range:
1701-1800
Voltage:
208-230/460V AC
Frame:
56H
Motor Thermal Protection:
None
Motor Service Factor:
1.15
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application:
General Application
Motor Design:
3-Phase
Nameplate RPM:
1730
Motor Shaft Rotation:
CW/CCW
Motor Frame Material:
Steel
Motor Shaft Design:
Keyed
Standards:
CE, CSA, UL
Inverter Rated:
Yes
Manufacturers Warranty Length:
1 yr
Full Load Amps:
4.1/2.0 A
Frame Material:
Steel
Shaft Length:
1 5/8 in
Length Less Shaft:
11 15/16 in
No. of Speeds:
1
Phase:
Three
Overall Length:
13 13/16 in
Hz:
60 Hz
Duty:
Continuous
Max. Ambient Temp.:
40 Degrees C
CC Number:
CC029A
Ins. Class:
F
Motor Bearings:
Ball
RPM Group:
1701-1800
Footnotes:
2,10,15
Nominal Efficiency:
86.5 %
Shaft Dia.:
5/8 in
Motor Efficiency Group:
Premium Efficient
Duty Cycle:
Continuous
Package Quantity:
1
