3-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1740 Nameplate RPM - 194177.00
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

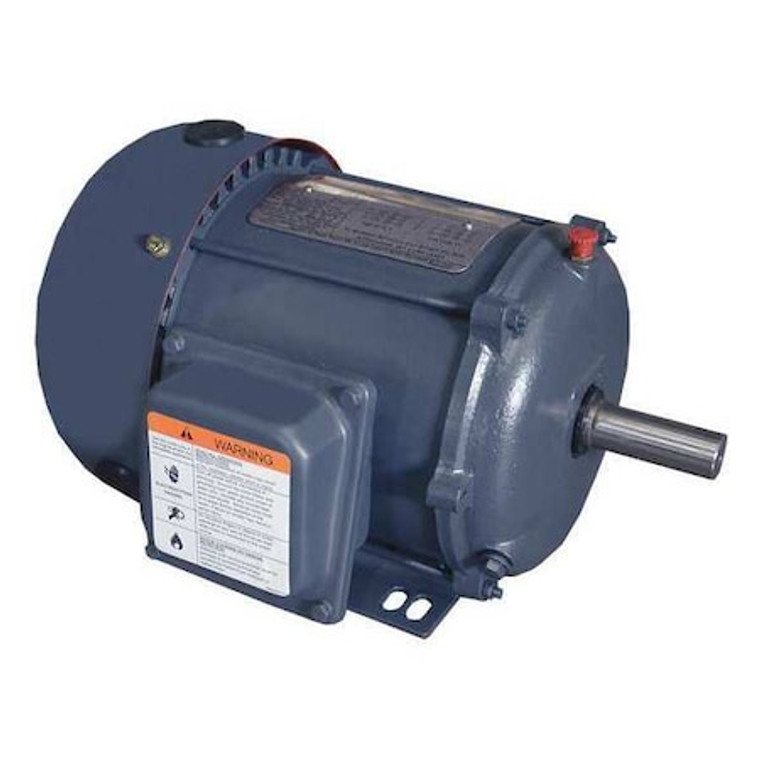

3-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1740 Nameplate RPM - 194177.00
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1740, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
- Country of Origin:
- Multiple
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 1 1/2
- RPM Range:
- 1701-1800
- Voltage:
- 230/460V AC
- Frame:
- 145T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.15
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1740
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- Horizontal
- Motor Frame Material:
- Cast Iron
- Motor Shaft Design:
- Keyed
- Standards:
- CE, CSA, UL
- Overall Length:
- 14 in
- RPM Group:
- 1701-1800
- CC Number:
- CC003A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Phase:
- Three
- Frame Material:
- Cast Iron
- Manufacturers Warranty Length:
- 3 yr
- Inverter Rated:
- Yes
- Length Less Shaft:
- 11 15/16 in
- Nominal Efficiency:
- 86.5 %
- Shaft Length:
- 2 1/4 in
- Motor Bearings:
- Ball
- Shaft Dia.:
- 7/8 in
- Footnotes:
- 12
- Ins. Class:
- F
- Max. Ambient Temp.:
- 40 Degrees C
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Duty:
- Continuous
- No. of Speeds:
- 1
- Hz:
- 60 Hz
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Full Load Amps:
- 4.0/2.0 A
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
