3-Phase General Purpose Motor, 1 1/2 HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage - 2NKX8
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

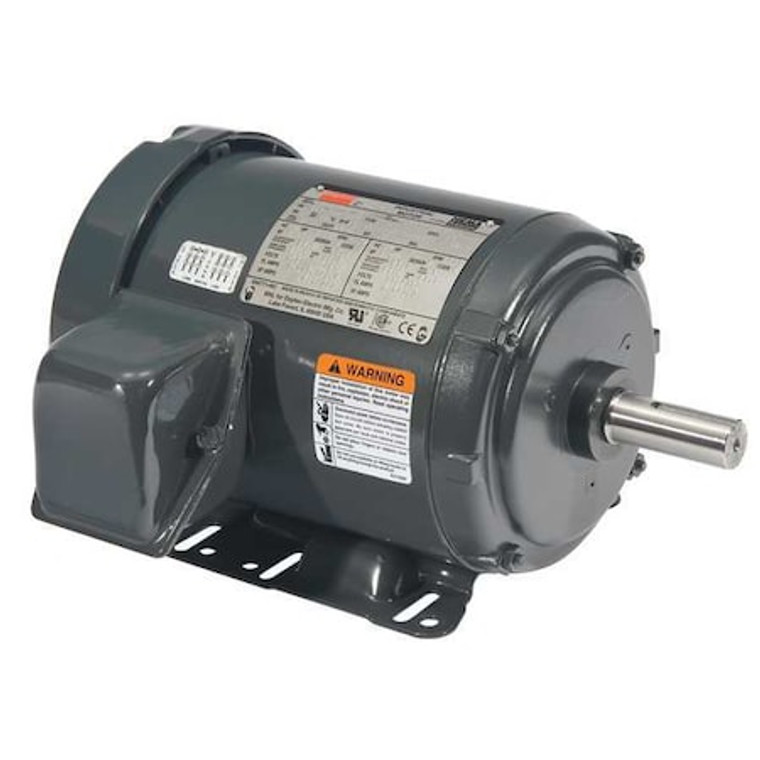

3-Phase General Purpose Motor, 1 1/2 HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage - 2NKX8
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1755, Frame 143-5T/56HZ, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.5-4.3/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 1 1/2
- RPM Range:
- 1701-1800
- Voltage:
- 208-230/460V AC
- Frame:
- 143-5T/56HZ
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1.25
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
- Motor Application:
- General Application
- Motor Design:
- 3-Phase
- Nameplate RPM:
- 1755
- Motor Shaft Rotation:
- CW/CCW
- Motor Mounting Position:
- All Angle
- Motor Frame Material:
- Rolled Steel
- Motor Shaft Design:
- Keyed
- Standards:
- CSA, UL
- Frame Material:
- Steel
- Full Load Amps:
- 4.5-4.3/2.2 A
- Motor Efficiency Group:
- NEMA Premium Efficient
- Inverter Rated:
- Yes
- No. of Speeds:
- 1
- Nominal Efficiency:
- 86.5 %
- Phase:
- Three
- Manufacturers Warranty Length:
- 3 yr
- RPM Group:
- 1701-1800
- Ins. Class:
- F
- Duty:
- Continuous
- Shaft Dia.:
- 7/8 in
- Max. Ambient Temp.:
- 40 Degrees C
- Hz:
- 60/50 Hz
- Shaft Length:
- 2 1/4 in
- CC Number:
- CC030A
- Green Certification or Other Recognition:
- NEMA Premium Rated
- Overall Length:
- 12 13/16 in
- Motor Bearings:
- Ball
- Length Less Shaft:
- 10 1/2 in
- Footnotes:
- 5,10
- Green Environmental Attribute:
- Product Contributes To Reducing Energy Consumption
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
-
-
