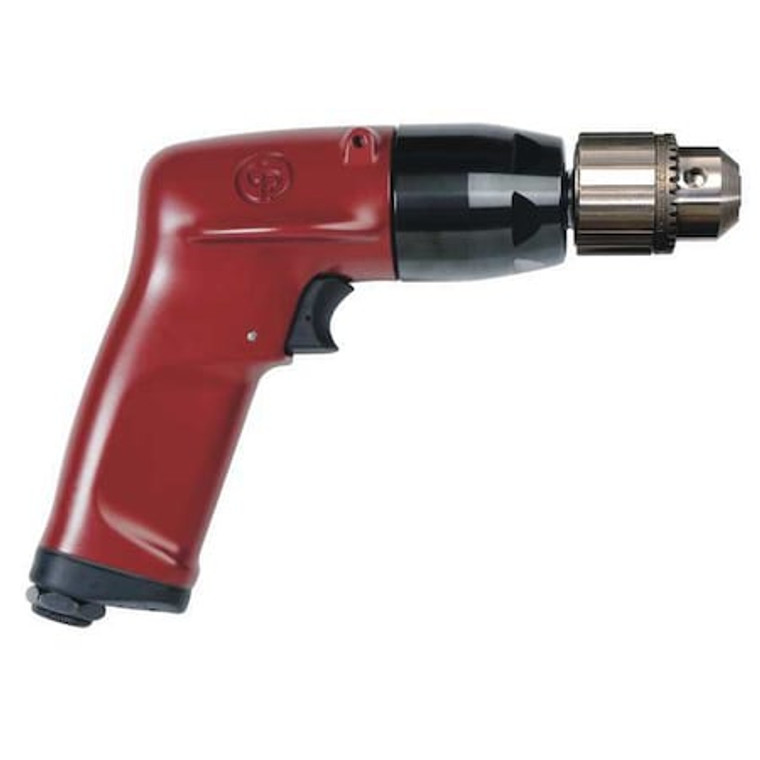

3/8" Pistol Air Drill 3200 rpm - CP1117P32

3/8" Pistol Air Drill 3200 rpm - CP1117P32

Chicago Pneumatic
SKU:
CP1117P32
|
UPC:
15451695255
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Drill, HP - Air Tools 1.00, Chuck Size - Air Drills 3/8 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 3,200 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 1.00 to 4.00 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 7.40, CFM @ Full Load 29.8, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing, Housing Material Aluminum
Additional Information
Country of Origin:
Taiwan, Province of China
Item:
Drill
HP:
1.0
HP - Air Tools:
1.00
Chuck Size - Air Drills:
3/8 in
CFM @ Full Load:
29.8
Air Inlet:
1/4 in
Drill Chuck Type - Air Drills:
Keyed
Reversing:
No
Min. Hose Size:
3/8 in
Required Pressure:
90 psi
Free Speed:
3,200 RPM
Overall Length:
7 15/16 in
Duty Cycle - Air Tools:
Industrial Duty
Torque:
1.00 to 4.00 ft-lb
Housing Material:
Aluminum
Drill Chuck Type:
Keyed
Handle Material:
Aluminum
Throttle Type:
Trigger
Item - Air Drills:
Air Drill
Chuck Size:
3/8 in
Duty:
Industrial
Gear Train:
Planetary
Includes:
Jacobs Chuck
Bearings:
Ball Bearing
Average CFM @ 15 Second Run Time:
7.40
Variable Speed:
Yes
Style:
Pistol
Air Inlet Size - Air Tools:
1/4 in NPT
Body Style - Air Tools:
Pistol
Tool Weight:
2.2 lb
Handle Type:
Pistol Grip
Application:
Drilling, Reaming Holes
Overall Height:
6 3/4 in
Overall Width:
3 1/8 in
Drilling Capacity in Steel:
1/8 in
Power Source:
Air-Powered
Exhaust Location:
Handle
Duty Rating:
Industrial Duty
Bearing Design:
Ball
Noise Level:
83 dB
Air Pressure:
90 psi
Max. Torque:
4 ft-lb
Reversible:
No
Spindle Thread Size:
3/8-24"
Drilling Capacity in Cast Iron:
1/4 in
Drilling Capacity in Aluminum:
1/4 in
Drilling Capacity in Wood:
3/8 in
Torque Range:
0 ft-lb to 4 ft-lb
Chuck Material:
Metal
Air Consumption:
29.5 cfm
Min. Torque:
0 ft-lb
Horsepower:
1 hp
Vibration Level:
2.5 m/sq sec
Package Quantity:
1
