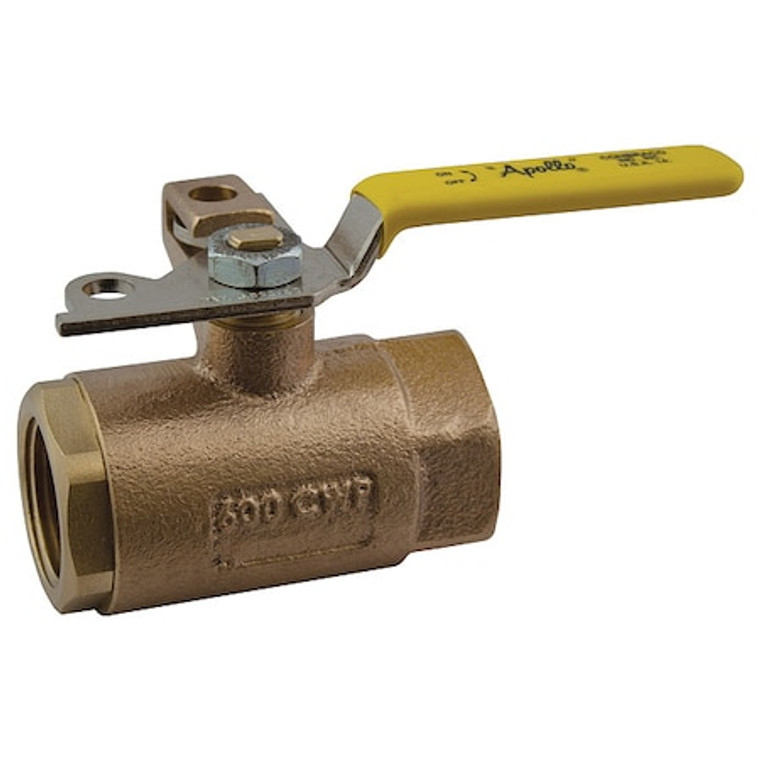

3/8" FNPT Bronze Ball Valve Inline - 75-102-41

3/8" FNPT Bronze Ball Valve Inline - 75-102-41

Apollo Valves
SKU:
75-102-41
|
UPC:
670750691003
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Two-Way Ball Valve, Body Material Bronze, For Media Air, Valve Construction Two-Piece, Nominal Valve Size 3/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Locking, Handle Type Lever
Additional Information
Country of Origin:
United States
Pipe Size:
3/8";Body Material=Bronze"
Body Style:
Inline
Seat Material:
RPTFE
Temp. Range:
50 Degrees to 200 Degrees F
Body Seal Material:
PTFE
Compliance:
MSS SP-110
Stem Material:
Brass
Valve Structure:
2-Piece
Connection Type:
FNPT x FNPT
Port:
Standard
Ball Valve Basic Body Material:
Bronze
Handle Type:
Pad Locking Lever
Ball Valve Product Group:
Manual
Handle Material:
Zinc Plated Steel with Vinyl Grip
Features:
May be Padlocked Open or Closed and includes Auto-Drain
Max. Pressure:
600 psi CWP
Item:
Ball Valve
Max. Steam Pressure:
150 PSI WSP
Stem Type:
Blowout Proof
Standards:
MSS SP-110, ASTM B16
Ball Material:
Chrome Plated Brass
Seal Material:
PTFE
Overall Length:
4.16";Type=Two Piece, Auto Drain Locking Handle"
Connection:
FNPT
Material of Construction:
Bronze
Sub-Category:
Bronze Ball Valves
Connection Gender - Side 1:
Female
Operating Temperature - Minimum:
50 Degrees F
Average Surface Roughness (Ra):
Not Applicable
Valve Body Style:
Straight
Valve Ways:
2-Way
3-A Standard Compliance:
Not Rated
Ball Port Style:
Standard Port
Connection Type - Side 1:
NPT
Connection Size - Side 2:
3/8 in
Color - Valve Handle:
Yellow
Handle Length:
2.87 in
For Media:
Air
Valve Construction:
Two-Piece
Handle - Locking:
Locking
Vented Ball Valve:
Not Applicable
Maximum Pressure - Steam:
150 psi
Maximum Pressure - Operating:
600 psi
Nominal Valve Size:
3/8 in
Coefficient of Volume (Cv):
0.01
Operating Temperature - Maximum:
200 Degrees F
Connection Gender - Side 2:
Female
Connection Type - Side 2:
NPT
Color - Valve Body:
Bronze
Vacuum Service Rating:
Not Applicable
Included Mounting:
Not Applicable
Maximum Pressure - Combustible Gas:
Not Rated
Manufacturer Warranty:
5 yr
Connection Size - Side 1:
3/8 in
ANSI Flange Class:
Not Applicable
Pipe Schedule Compatibility:
Not Applicable
Cleaned and Bagged:
Not Cleaned and Bagged
Package Quantity:
1
