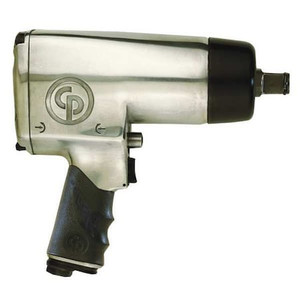

3/4" Pistol Grip Air Impact Wrench 1200 ft.-lb. - CP6763

3/4" Pistol Grip Air Impact Wrench 1200 ft.-lb. - CP6763

Chicago Pneumatic
SKU:
CP6763
|
UPC:
15451712136
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Impact Wrench, Power Source Air Powered, Air Consumption 30 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,200 ft-lb, Fastening Torque 950 ft-lb, Free Speed 6,300 RPM, Impact Rated Yes, Impact Sound Level 107 dB, Impacts per Minute 900, Number of Speed Settings 3, Power to Weight Ratio 99.2 ft-lb/lb, Max. Bolt Capacity 1 1/4 in
Additional Information
Country of Origin:
Taiwan, Province of China
Item:
Impact Wrench
Square Drive Size:
3/4";Free Speed=6,300 RPM"
Air Inlet:
3/8 in NPT
Handle Type:
Pistol Grip
Overall Length:
8 3/4 in
CFM @ Full Load:
30.0
Item - Air Impact Wrenches:
Air Impact Wrench
Air Inlet Size - Air Tools:
3/8 NPT"
Torque Range:
260 to 950 ft.-lb.
Max. Torque:
1200 ft.-lb.
Drive Size - Air Tools:
3/4 Square"
Anvil:
Standard
Blows per Minute - Air Tools:
900
Retainer Type - Air Impacts:
Thru Hole
Anvil Length - Air Impacts:
0.750";Tool Weight=12.1 lb"
Duty:
Industrial
Body Style - Air Tools:
Pistol
Blows per Minute:
900
Retainer Type:
Friction Ring
Duty Cycle - Air Tools:
Industrial Duty
Min. Hose Size:
1/2 in
Anvil Type - Air Impacts:
Standard
Handle Material:
Composite
Average CFM @ 15 Second Run Time:
7.50
Housing Material:
Steel
Max. Bolt Capacity:
1 1/4 in
Style:
Pistol Grip
Required Pressure:
90 psi
Features:
Combined Power Regulator With Forward/Reverse, Robust For The Roughest Environments And The Toughest Applications
Impact Rated:
Yes
Max. Air Pressure:
90 psi
Power to Weight Ratio:
99.2 ft-lb/lb
Drive Size:
3/4 in Square
Breakaway Torque:
1,200 ft-lb
Min. Air Pressure:
90 psi
Clutch Style:
Twin Hammer
Air Pressure:
90 psi
Standards:
EN ISO 11148-6
Fastening Torque:
950 ft-lb
Power Source:
Air Powered
Vibration Level:
9.4 m/sq sec
Exhaust Location:
Bottom
Impact Sound Level:
107 dB
Air Consumption:
30 cfm
Built-In Light:
No
Duty Rating:
Industrial Duty
Impacts per Minute:
900
Drive Type:
Standard
Tool Style:
Compact
Number of Speed Settings:
3
Package Quantity:
1
