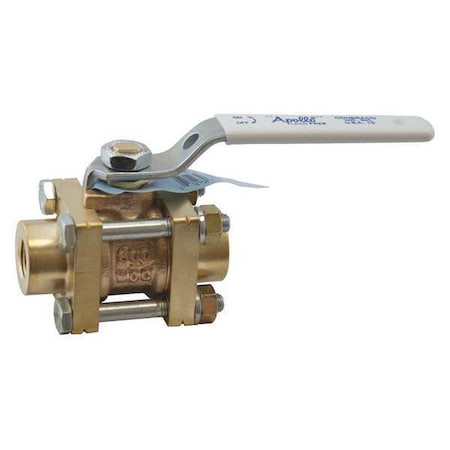

3/4" FNPT Bronze Ball Valve Inline - 82LF10401

3/4" FNPT Bronze Ball Valve Inline - 82LF10401

Apollo Valves
SKU:
82LF10401
|
UPC:
670750677120
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Water, Valve Construction Three-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
Additional Information
Country of Origin:
United States
Pipe Size:
3/4";Body Material=Lead-Free Bronze"
Body Style:
Inline
Standards:
NSF 61-8
Stem Material:
C27450LF Brass
Connection Type:
FNPT x FNPT
Port:
Full
Ball Valve Basic Body Material:
Bronze
Temp. Range:
-20 Degrees to 450 Degrees F
Max. Pressure:
600 psi CWP
Stem Type:
Blowout Proof
Handle Material:
Zinc Plated Steel with Vinyl Grip
Valve Structure:
3-Piece
Seat Material:
RPTFE
Max. Steam Pressure:
150 PSI WSP
Compliance:
ISO 9001
Ball Material:
Lead Free Chrome Plated Brass
Body Seal Material:
PTFE
Item:
Ball Valve
Ball Valve Product Group:
Manual
Features:
White Grip, and Blue Hang Tag
Handle Type:
Lever
Seal Material:
PTFE
Overall Length:
3.43";Type=Three Piece"
Material of Construction:
Lead Free Bronze
Sub-Category:
Bronze Ball Valves
Valve Body Style:
Straight
Vacuum Service Rating:
29 in Hg
Handle - Locking:
Non-Locking
3-A Standard Compliance:
Not Rated
Operating Temperature - Minimum:
-20 Degrees F
For Media:
Steam, Water
NSF Certifications for Food and Drinking Water:
NSF 61
Maximum Pressure - Steam:
150 psi
Vented Ball Valve:
Not Applicable
Nominal Valve Size:
3/4 in
Maximum Pressure - Operating:
600 psi
Handle Length:
4.87 in
Pipe Schedule Compatibility:
Not Applicable
Ball Port Style:
Full Port
Operating Temperature - Maximum:
400 Degrees F
Manufacturer Warranty:
5 yr
ANSI Flange Class:
Not Applicable
Handle Height:
2.18 in
Connection Size - Side 1:
3/4 in
Average Surface Roughness (Ra):
Not Applicable
Connection Gender - Side 1:
Female
Valve Ways:
2-Way
Connection Gender - Side 2:
Female
Included Mounting:
Not Applicable
Connection Type - Side 2:
NPT
Color - Valve Handle:
White
Connection Type - Side 1:
NPT
Connection Size - Side 2:
3/4 in
Cleaned and Bagged:
Not Cleaned and Bagged
Coefficient of Volume (Cv):
0.01
Maximum Pressure - Combustible Gas:
Not Rated
Valve Construction:
Three-Piece
Color - Valve Body:
Bronze
Package Quantity:
1
