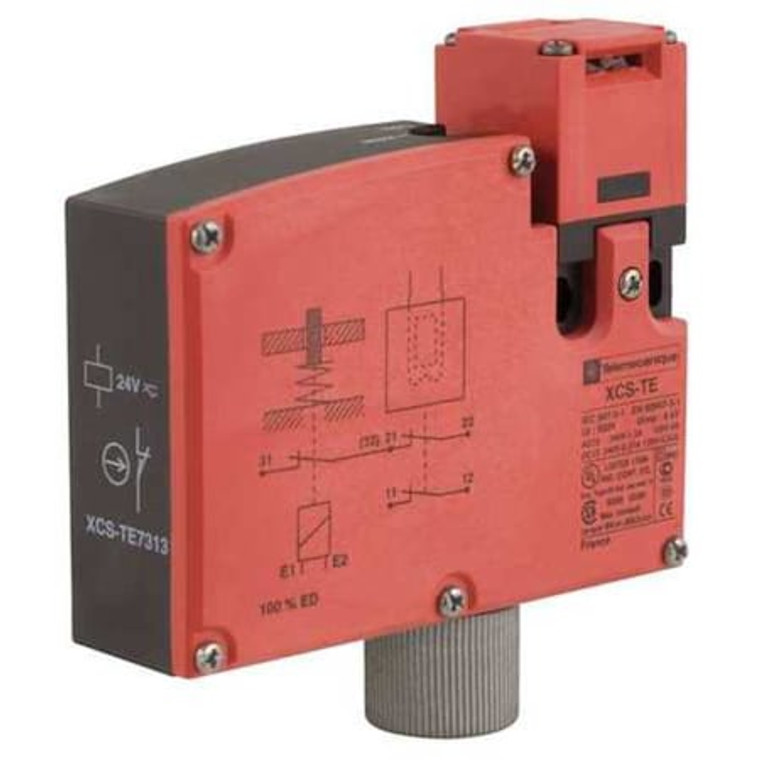

2NC Safety Interlock Switch Nema 4, 4X, 12 IP 67 - XCSTE7333

2NC Safety Interlock Switch Nema 4, 4X, 12 IP 67 - XCSTE7333

Telemecanique Sensors
SKU:
XCSTE7333
|
UPC:
785901825227
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Safety Interlock Switch, Actuating Key, Solenoid Locking, Contact Form 2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 6 A @ 300 V, Series XCSTE, DC Contact Rating 3 A @ 300 V, Solenoid Voltage 120 V AC, Height 1.3 in, Width 4.33 in, Depth 3.68 in, NEMA Rating 12, 4, 4X, IP Rating IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Plastic
Additional Information
Country of Origin:
France
Item:
Safety Interlock Switch
AC Contact Rating:
6 A @ 300 V
DC Contact Rating:
3 A @ 300 V
Solenoid Voltage:
120 V AC
IP Rating:
IP67
Standards:
CSA, UL
Width:
4.33 in
Body Material:
Plastic
Operating Force:
3.4 lb
Depth:
3.68 in
NEMA Rating:
12, 4, 4X
Contact Form:
2NC
Series:
XCSTE
Conduit Size:
1/2 in NPT
Actuator Length:
Key Dependent
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Description/Special Features:
Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
Height:
1.3 in
Connection Type:
1/2 in NPT Conduit
Style:
Actuating Key, Solenoid Locking
Electrical Connection:
1/2 in NPT Conduit
Operating Temperature - Minimum:
9 Degrees F
Actuating Key Type:
Pivoting, Flat
Overall Depth:
1.3 in
Circuitry Action:
Slow Action
Operating Temperature - Maximum:
284 Degrees F
Resistance Properties:
Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight
Manufacturer Warranty Length:
18 mo
NEMA Enclosure Rating:
12, 4, 4X
Overall Height:
3.67 in
Overall Width:
4.33 in
Actuator:
key
Electromagnet Interlocking:
locking on de-energisation and unlocking on energisation of solenoid
Ambient Air Temperature For Operation:
-13-140°F
Line Rated Current:
6A
[Us] Rated Supply Voltage:
120 V
Device Short Name:
XCSTE
Enclosure Material:
Plastic
Number Of Poles:
2
Enclosure Type:
dust and damp proof enclosure indoor/outdoor || corrosion resistance enclosure indoor/outdoor
Permissible Voltage:
300 V AC
Nema Degree Of Protection:
NEMA 4/4X/12
Ip Degree Of Protection:
IP67
Contacts Type And Composition:
2 NC
Contact Operation:
slow-break
Package Quantity:
1
