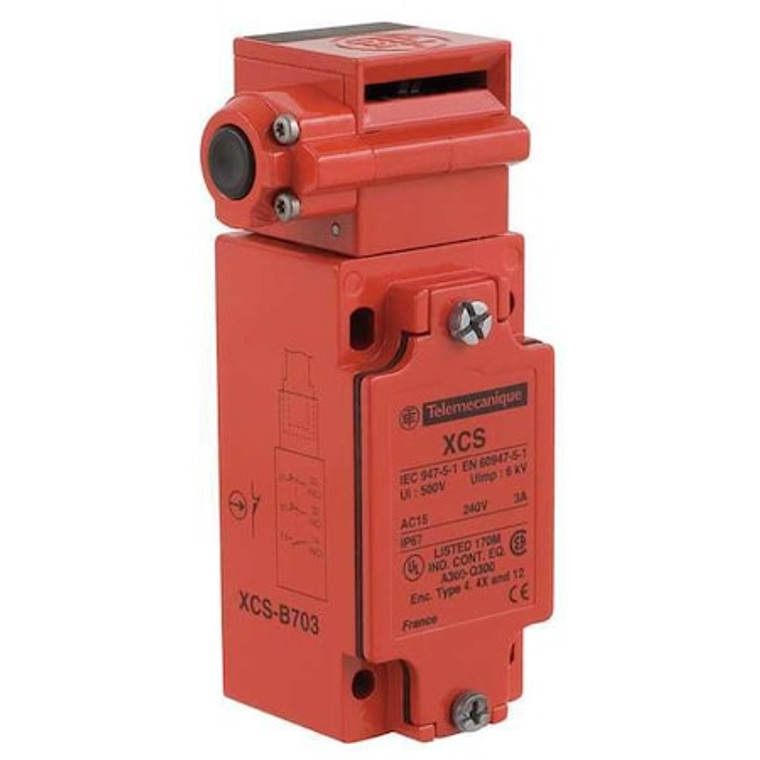

2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67 - XCSB703

2NC/1NO Safety Interlock Switch Nema 4, 4X, 12 IP 67 - XCSB703

Telemecanique Sensors
SKU:
XCSB703
|
UPC:
785901377337
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Safety Interlock Switch, Actuating Key, Push Button Release, Contact Form 1NO/2NC, Actuator Length Key Dependent, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10 A @ 300 V, Series XCSB, DC Contact Rating 6 A @ 300 V, Height 1.73 in, Width 2.05 in, Depth 4.47 in, NEMA Rating 12, 4, 4X, IP Rating IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak
Additional Information
Country of Origin:
France
Item:
Safety Interlock Switch
Style:
Actuating Key, Push Button Release
Series:
XCSB
Actuator Length:
Key Dependent
AC Contact Rating:
10 A @ 300 V
DC Contact Rating:
6 A @ 300 V
Contact Form:
1NO/2NC
Connection Type:
1/2 in NPT Conduit
Height:
1.73 in
Width:
2.05 in
Depth:
4.47 in
IP Rating:
IP67
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Head Material:
Zamak
Conduit Size:
1/2 in NPT
Standards:
CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508
Description/Special Features:
Dust Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, Water Tight
NEMA Rating:
12, 4, 4X
Operating Force:
4.5 lb
Body Material:
Zamak
Material:
metal
Electrical Connection:
1/2 in NPT Conduit
Shock Resistance:
10 gn 11 ms IEC 60068-2-27
Mechanical Durability:
600000 cycles
Head Type:
key operated turret head
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation:
-25-70°C
Contact Operation:
slow-break, break before make
Product Certifications:
UL || CSA
[Ui] Rated Insulation Voltage:
300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
[Ithe] Conventional Enclosed Thermal Current:
10A
Maximum Actuation Speed:
0.5 m/s
Number Of Poles:
3
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-5-1
Ip Degree Of Protection:
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Minimum Actuation Speed:
0.01 m/s
Contacts Type And Composition:
2 NC + 1 NO
Positive Opening:
with NC contact
Cable Entry:
1 entry tapped 1/2 NPT"
Component Name:
XCSB
[Ie] Rated Operational Current:
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Maximum Operating Rate:
10 cyc/mn for maximum durability
Short-Circuit Protection:
10 A cartridge fuse gG (gl)
Actuator Forcible Withdrawal Rtc:
1500 N
Minimum Actuator Force For Extraction:
20 N
Design:
industrial
Protective Treatment:
TC
Safety Level:
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and
Product Or Component Type:
safety switch
Ambient Air Temperature For Storage:
-40-70°C
Local Signalling:
without
Electrical Shock Protection Class:
class I EN/IEC 61140
Actuating Key Type:
Pivoting, Flat
Resistance Properties:
Corrosion Resistant, Dust Resistant, Shock Resistant, Vibration Resistant, Watertight
Overall Height:
4.49 in
Operating Temperature - Maximum:
158 Degrees F
Overall Depth:
1.73 in
Mechanical Operating Durability:
600,000
NEMA Enclosure Rating:
12, 4, 4X
Manufacturer Warranty Length:
18 mo
Operating Temperature - Minimum:
-13 Degrees F
Circuitry Action:
Slow Action
Actuator Material:
Metal
Overall Width:
2.05 in
Package Quantity:
1
