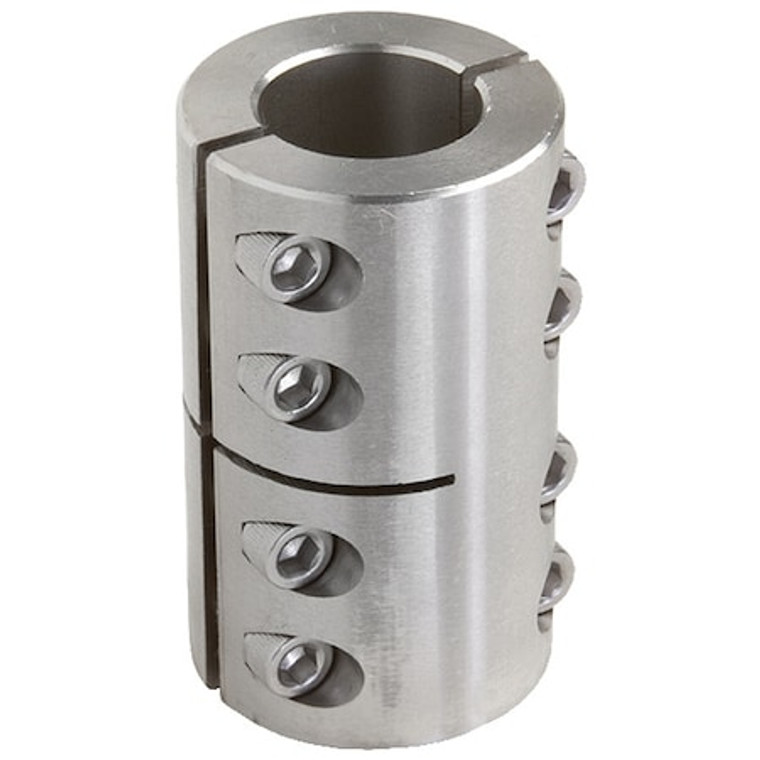

2ISCC-150-100-S Two-Piece Industry Standard Clamping Coupling - 2ISCC-150-100-S

2ISCC-150-100-S Two-Piece Industry Standard Clamping Coupling - 2ISCC-150-100-S

Climax Metal Products
SKU:
2ISCC-150-100-S
|
UPC:
44861043448
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 1 in, Bore Type Round, Clearance Diameter 2.94 in, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 2 5/8 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 2,660 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 in x 1-1/2 in
Material - Couplings:
Stainless Steel
Outside Dia.:
2 15/16 in
Overall Length:
3 7/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Plain
Screw Size:
5/16-24"
Design:
(8) Socket Capscrews, Can Be Installed Without Disassembling any Machinery or Components
Max. Torque:
2,660 in-lb
Clearance Dia. (In.):
2-15/16
Type:
Two Piece Clamp Type, Without Keyway
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Screw Size (In.):
5/16-24 x 1
Machined From:
Bar Stock
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Max. Torque (In.-Lbs.):
2660
Material:
Stainless Steel
Clearance Dia.:
2.938 in
Max. RPM:
4,000 RPM
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Stainless Steel
Bore Tolerance:
+0.000 in / -0.003 in
Coupling Construction:
Two-Piece
Bore Type:
Round
Keyway Width 2:
Not Applicable
Coupling Outside Diameter:
2 5/8 in
Coupling Material Grade:
303
Clearance Diameter:
2.94 in
Coupling Material Finish:
Plain
Keyway Depth 2:
Not Applicable
Keyway Depth 1:
Not Applicable
Shaft Locking Type:
Clamp On
Maximum Bore Diameter:
1 1/2 in
Bore Diameter 2:
1 in
Screw Thread Size:
5/16-24"
Minimum Bore Diameter:
1 in
Screw Material Grade:
304
Number of Locking Screws:
4
Keyway Width 1:
Not Applicable
Maximum Speed:
4,000 RPM
Different Bore Sizes:
Yes
Coupling Material:
Stainless Steel
Screw Material Finish:
Plain
Bore Diameter 1:
1 1/2 in
Included Screws:
(4) Hex Socket Cap Screws
Maximum Torque:
2,660 in-lb
Zero Backlash:
Yes
Package Quantity:
1
