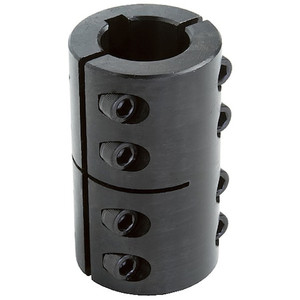

2ISCC-075-062KW Two-Piece Industry Standard Clamping Coupling with Keyway - 2ISCC-075-062KW

2ISCC-075-062KW Two-Piece Industry Standard Clamping Coupling with Keyway - 2ISCC-075-062KW

Climax Metal Products
SKU:
2ISCC-075-062KW
|
UPC:
44861061909
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 5/8 in, Bore Type Round Keyed, Clearance Diameter 1.81 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/2 in, Different Bore Sizes Yes, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 5/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 1,540 in-lb, Overall Length 2 1/4 in
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
5/8 in x 3/4 in
Material - Couplings:
Steel
Outside Dia.:
1 13/16 in
Overall Length:
2 1/4 in
With Keyway / Without Keyway:
With Keyway
Finish:
black oxide
Screw Size:
1/4-28"
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Design:
(8) Socket Capscrews, Can Be Installed Without Disassembling any Machinery or Components
Type:
One Piece Clamp Type, with Keyway
Clearance Dia.:
1.813 in
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Screw Size (In.):
1/4-28 x 5/8
Material:
Steel
Max. Torque (In.-Lbs.):
1540
Machined From:
Bar Stock
Max. Torque:
1,540 in-lb
Max. RPM:
4,000 RPM
Keyway Width:
3/16 in
Clearance Dia. (In.):
1-13/16
Keyway Width (In.):
3/16
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Carbon Steel
Bore Tolerance:
+0.003 in / -0.000 in
Bore Diameter 2:
5/8 in
Included Screws:
(4) Hex Socket Cap Screws
Keyway Depth 2:
3/32 in
Keyway Width 2:
3/16 in
Bore Diameter 1:
3/4 in
Screw Thread Size:
1/4-28"
Bore Type:
Round Keyed
Zero Backlash:
Yes
Clearance Diameter:
1.81 in
Number of Locking Screws:
4
Coupling Material Grade:
1211
Different Bore Sizes:
Yes
Minimum Bore Diameter:
5/8 in
Maximum Bore Diameter:
3/4 in
Coupling Construction:
Two-Piece
Coupling Material Finish:
Black Oxide
Coupling Material:
Carbon Steel
Keyway Depth 1:
3/32 in
Shaft Locking Type:
Clamp On
Maximum Torque:
1,540 in-lb
Screw Material Grade:
4140
Screw Material Finish:
Black Oxide
Keyway Width 1:
3/16 in
Coupling Outside Diameter:
1 1/2 in
Maximum Speed:
4,000 RPM
Package Quantity:
1
