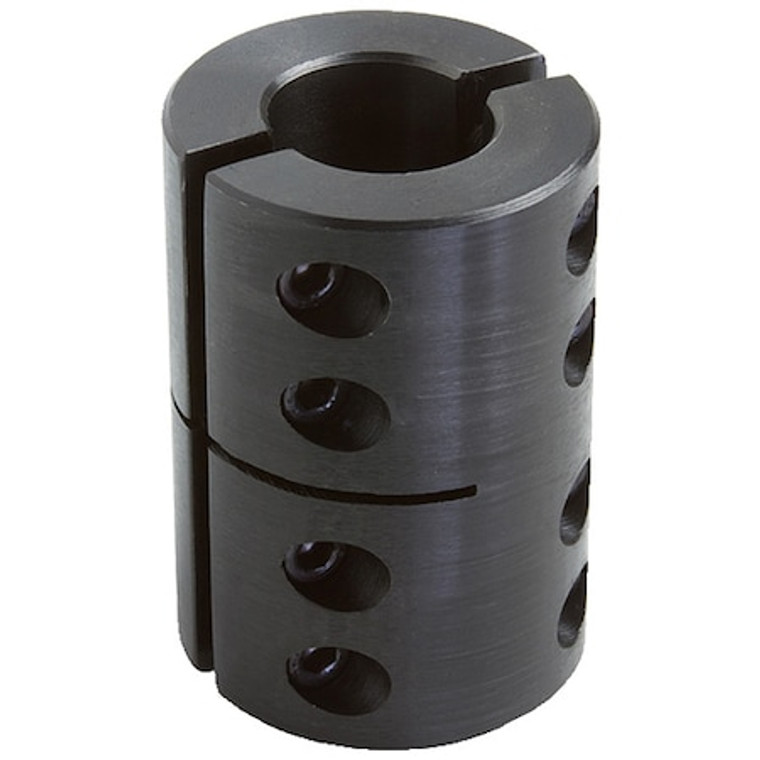

2CC-200-200 Two-Piece Clamping Coupling Recessed Screw - 2CC-200-200

2CC-200-200 Two-Piece Clamping Coupling Recessed Screw - 2CC-200-200

Climax Metal Products
SKU:
2CC-200-200
|
UPC:
44861267028
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 2 in, Bore Diameter 2 2 in, Bore Type Round, Clearance Diameter 3.25 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 3 1/4 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 2 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 2 in, Maximum Speed 4,000 RPM, Maximum Torque 9,500 in-lb, Overall Length 4 7/8 in
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
2 in
Material - Couplings:
Steel
Outside Dia.:
3 1/4 in
Overall Length:
4 7/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Machined From:
Bar Stock
Screw Size:
5/16-24"
Clearance Dia. (In.):
3-1/4
Screw Size (In.):
5/16-24 x 1
Type:
Two Piece Clamp Type, Without Keyway
Max. Torque (In.-Lbs.):
9500
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
Steel
Max. RPM:
4,000 RPM
Max. Torque:
9,500 in-lb
Design:
(8) Socket Capscrews, Can Be Installed Without Disassembling any Machinery or Components, Recessed Screws Provide an Outside Surface Free of any Major Projections for Safety
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Clearance Dia.:
3.25 in
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Carbon Steel
Bore Tolerance:
+0.003 in / -0.000 in
Screw Material Grade:
4140
Screw Thread Size:
5/16-24"
Screw Material Finish:
Black Oxide
Maximum Torque:
9,500 in-lb
Included Screws:
(4) Hex Socket Cap Screws
Bore Diameter 2:
2 in
Keyway Width 2:
Not Applicable
Features:
Recessed Screws
Coupling Material Grade:
1211
Different Bore Sizes:
No
Minimum Bore Diameter:
2 in
Coupling Material:
Carbon Steel
Keyway Depth 2:
Not Applicable
Bore Diameter 1:
2 in
Number of Locking Screws:
4
Clearance Diameter:
3.25 in
Coupling Outside Diameter:
3 1/4 in
Zero Backlash:
Yes
Shaft Locking Type:
Clamp On
Coupling Construction:
Two-Piece
Keyway Width 1:
Not Applicable
Maximum Bore Diameter:
2 in
Coupling Material Finish:
Black Oxide
Maximum Speed:
4,000 RPM
Bore Type:
Round
Keyway Depth 1:
Not Applicable
Package Quantity:
1
