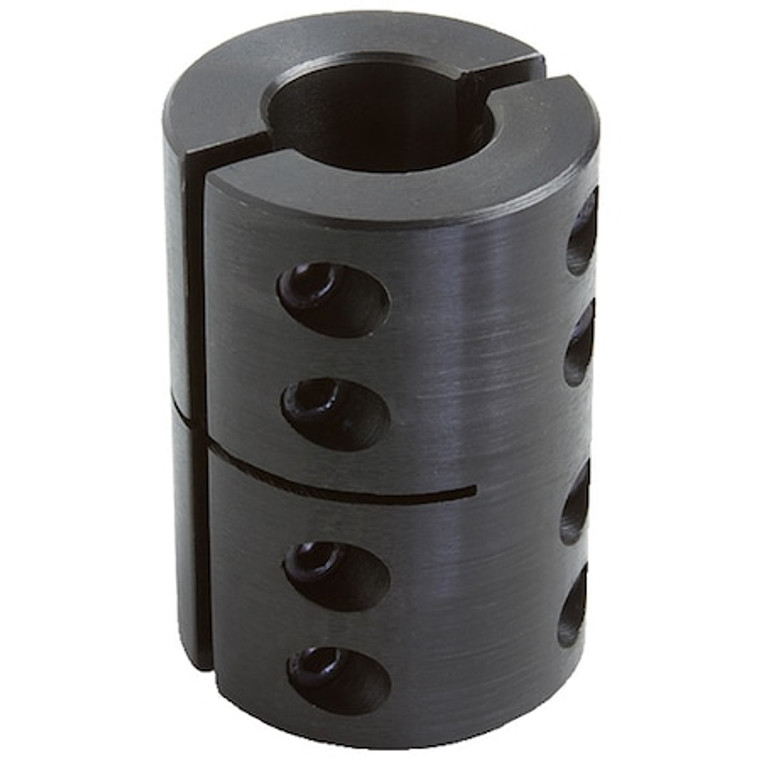

2CC-125-125 Two-Piece Clamping Coupling Recessed Screw - 2CC-125-125

2CC-125-125 Two-Piece Clamping Coupling Recessed Screw - 2CC-125-125

Climax Metal Products
SKU:
2CC-125-125
|
UPC:
44861262023
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 1/4 in, Bore Diameter 2 1 1/4 in, Bore Type Round, Clearance Diameter 2.25 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 1/4 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 1/4 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/4 in, Maximum Speed 4,000 RPM, Maximum Torque 3,080 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 1/4 in
Material - Couplings:
Steel
Outside Dia.:
1 7/8 in
Overall Length:
3 3/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Screw Size:
1/4-28"
Clearance Dia.:
2.25 in
Design:
(8) Socket Capscrews, Can Be Installed Without Disassembling any Machinery or Components, Recessed Screws Provide an Outside Surface Free of any Major Projections for Safety
Type:
Two Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Screw Size (In.):
1/4-28 x 3/4
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Machined From:
Bar Stock
Max. Torque:
3,080 in-lb
Material:
Steel
Max. Torque (In.-Lbs.):
3080
Max. RPM:
4,000 RPM
Clearance Dia. (In.):
2-1/4
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.003 in / -0.000 in
Screw Material:
Carbon Steel
Maximum Torque:
3,080 in-lb
Maximum Bore Diameter:
1 1/4 in
Keyway Width 2:
Not Applicable
Included Screws:
(4) Hex Socket Cap Screws
Screw Material Finish:
Black Oxide
Clearance Diameter:
2.25 in
Bore Diameter 1:
1 1/4 in
Keyway Depth 2:
Not Applicable
Coupling Construction:
Two-Piece
Coupling Outside Diameter:
2 1/4 in
Features:
Recessed Screws
Number of Locking Screws:
4
Zero Backlash:
Yes
Keyway Width 1:
Not Applicable
Bore Type:
Round
Shaft Locking Type:
Clamp On
Screw Thread Size:
1/4-28"
Coupling Material Grade:
1211
Screw Material Grade:
4140
Coupling Material Finish:
Black Oxide
Minimum Bore Diameter:
1 1/4 in
Maximum Speed:
4,000 RPM
Coupling Material:
Carbon Steel
Different Bore Sizes:
No
Keyway Depth 1:
Not Applicable
Bore Diameter 2:
1 1/4 in
Package Quantity:
1
