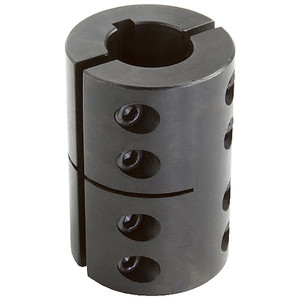

2CC-075-075 Two-Piece Clamping Coupling Recessed Screw - 2CC-075-075

2CC-075-075 Two-Piece Clamping Coupling Recessed Screw - 2CC-075-075

Climax Metal Products
SKU:
2CC-075-075
|
UPC:
44861267004
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 3/4 in, Bore Type Round, Clearance Diameter 2.75 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 3/4 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 1,850 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
3/4 in
Material - Couplings:
Steel
Outside Dia.:
1 3/4 in
Overall Length:
2 5/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Screw Size:
1/4-28"
Max. RPM:
4,000 RPM
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Max. Torque (In.-Lbs.):
1850
Clearance Dia. (In.):
1-3/4
Screw Size (In.):
1/4-28 x 5/8
Design:
Locks Securely to Shafting with (2) Socket Setscrews
Machined From:
Bar Stock
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Clearance Dia.:
1.75 in
Max. Torque:
1,850 in-lb
Type:
Two Piece Clamp Type, Without Keyway
Material:
Steel
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Carbon Steel
Bore Tolerance:
+0.003 in / -0.000 in
Shaft Locking Type:
Clamp On
Clearance Diameter:
2.75 in
Keyway Depth 1:
Not Applicable
Screw Thread Size:
1/4-28"
Different Bore Sizes:
No
Coupling Material Finish:
Black Oxide
Maximum Torque:
1,850 in-lb
Included Screws:
(4) Hex Socket Cap Screws
Coupling Material:
Carbon Steel
Maximum Speed:
4,000 RPM
Keyway Width 1:
Not Applicable
Bore Type:
Round
Features:
Recessed Screws
Maximum Bore Diameter:
3/4 in
Keyway Width 2:
Not Applicable
Screw Material Finish:
Black Oxide
Number of Locking Screws:
4
Coupling Construction:
Two-Piece
Screw Material Grade:
4140
Coupling Material Grade:
1211
Coupling Outside Diameter:
1 3/4 in
Bore Diameter 1:
3/4 in
Bore Diameter 2:
3/4 in
Zero Backlash:
Yes
Minimum Bore Diameter:
3/4 in
Keyway Depth 2:
Not Applicable
Package Quantity:
1
