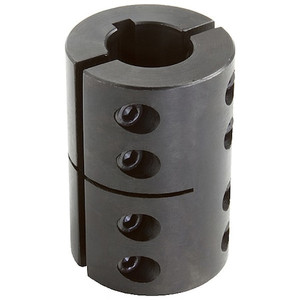

2CC-075-075-KW Two-Piece Clamping Coupling Recessed Screw with Keyway - 2CC-075-075-KW

2CC-075-075-KW Two-Piece Clamping Coupling Recessed Screw with Keyway - 2CC-075-075-KW

Climax Metal Products
SKU:
2CC-075-075-KW
|
UPC:
44861267011
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 3/4 in, Bore Type Round Keyed, Clearance Diameter 1.75 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 3/4 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 1,850 in-lb, Overall Length 2 5/8 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
3/4 in
Material - Couplings:
Steel
Outside Dia.:
1 3/4 in
Overall Length:
2 5/8 in
With Keyway / Without Keyway:
With Keyway
Finish:
black oxide
Screw Size (In.):
1/4-28 x 5/8
Clearance Dia.:
1.75 in
Keyway Width:
3/16 in
Max. Torque:
1,850 in-lb
Clearance Dia. (In.):
1-3/4
Keyway Width (In.):
3/16
Max. RPM:
4,000 RPM
Material:
Steel
Machined From:
Bar Stock
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Screw Size:
1/4-28"
Max. Torque (In.-Lbs.):
1850
Design:
(8) Socket Capscrews, Can Be Installed Without Disassembling any Machinery or Components
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Type:
Two Piece Clamp Type, with Keyway
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Carbon Steel
Bore Tolerance:
+0.003 in / -0.000 in
Included Screws:
(4) Hex Socket Cap Screws
Maximum Torque:
1,850 in-lb
Coupling Outside Diameter:
1 3/4 in
Keyway Width 1:
3/16 in
Keyway Depth 1:
3/32 in
Shaft Locking Type:
Clamp On
Different Bore Sizes:
No
Minimum Bore Diameter:
3/4 in
Bore Type:
Round Keyed
Features:
Recessed Screws
Zero Backlash:
Yes
Maximum Bore Diameter:
3/4 in
Coupling Construction:
Two-Piece
Keyway Width 2:
3/16 in
Bore Diameter 2:
3/4 in
Bore Diameter 1:
3/4 in
Coupling Material Grade:
1211
Coupling Material:
Carbon Steel
Screw Material Grade:
4140
Keyway Depth 2:
3/32 in
Number of Locking Screws:
4
Clearance Diameter:
1.75 in
Coupling Material Finish:
Black Oxide
Screw Material Finish:
Black Oxide
Maximum Speed:
4,000 RPM
Screw Thread Size:
1/4-28"
Package Quantity:
1
