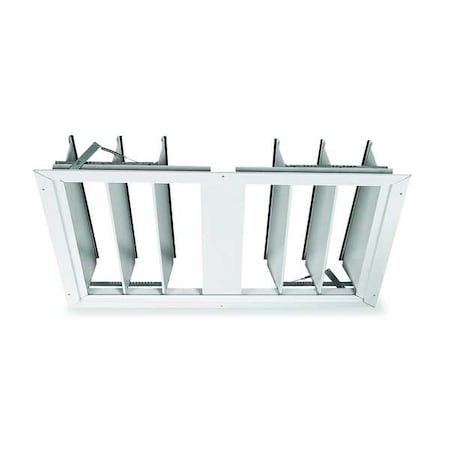

24 in Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter - 4HA10

Name: 24 in Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter - 4HA10
Brand: Dayton
SKU: 4HA10
Price: 124.19 USD
Availability: InStock

Dayton

SKU:

4HA10

UPC:

190735324936

Availability:

In Stock

(No reviews yet)

29.7 In.H-W Aluminum Ceiling Truss Damper, Frame Material Aluminum, Number of Panels 1, Maximum Air Velocity 1500 fpm, Overall Height 30 3/4 in, Rough Opening Shape Rectangular, Fits Fan Diameter 24 in, Free Area 4.4 sq ft, Overall Width 29 3/4 in, Frame Material Thickness 0.1 in, Frame Depth 1 3/8 in, Rough Opening Length 28 3/4 in, Maximum Pressure 1 in wc, Rough Opening Width 27.7 in, Blade Material Aluminum, Closure Type Gravity, Flange Width 1 5/8 in

Country of Origin:: United States
Item:: 29.7H-W Aluminum Ceiling Truss Damper"
Shutter Mounting Position:: Horizontal
Shutter Mounting Location:: Ceiling
Shutter Construction Material:: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area:: 4.425 sq ft
Shutter Opening Required:: 28-3/4 in x 27-11/16 in
Shutter Overall Size:: 31 in L x 30 in W
Fits Fan Dia.:: 24 in
Blade Material:: Aluminum
Max. Velocity:: 1500 FPM
Width:: 29 11/16 in
Shutter Overall Square:: 23";Length=30 3/4 in"
For Use With:: 3C545
Shutter Item:: Whole House Fan Economy Ceiling Truss Shutter
Open Depth:: 5 in
Flange Width:: 1 5/8 in
Mounting Hole Size:: Prepunched
Frame Depth:: 1 3/8 in
Number of Panels:: 1
Mounting Position:: Horizontal
Free Area:: 4.4 sq ft
Counterbalanced:: Yes
Series:: CTRF
Mounting Hole Diameter:: 1/4 in
Flange Type:: Reversed Flange
Damper Finish:: Baked Enamel
Tie-Rod Material:: Galvanized Steel Frame and Tie Rods
Frame Material:: Aluminum
Frame Material Thickness:: 0.1 in
Airflow Direction:: Horizontal
Blade Seal Material:: Felt
Color:: White
Fits Fan Diameter:: 24 in
Maximum Pressure:: 1 in wc
Maximum Air Velocity:: 1500 fpm
Overall Height:: 30 3/4 in
Closure Velocity Rating:: 1,500 fpm
Blade Material Thickness:: 26 ga
Switch Action:: Normally Closed
Rough Opening Shape:: Rectangular
Opening Type:: Gravity
Rough Opening Length:: 28 3/4 in
Overall Width:: 29 3/4 in
Closure Type:: Gravity
Rough Opening Width:: 27.7 in
Bushing Material:: Stainless Steel
Package Quantity:: 1
